Understanding Spot Welding

Spot welding
Spot welding

Spot welding, also known as resistance spot welding, is a modern industrial staple, particularly for combining various sheet metal items. This method is based on using two specially shaped copper alloy electrodes. These electrodes serve two functions: they focus the welding current into a compact “spot” while clamping the sheets together. The effectiveness of the process is dependent on this dual activity.

The mechanics of spot welding are simple yet brilliant. The electrodes’ pressure firmly holds the workpieces in place while being welded. A considerable amount of energy is subsequently supplied to the desired location in an extremely short period, ranging from 10 to 100 milliseconds. Because of the quick energy transfer, welding may occur without overheating the rest of the sheet metal, retaining its integrity and strength.

Spot welding is a versatile and widely utilized procedure in industries like automotive and electronics. Its ability to swiftly apply tremendous energy to a concentrated place and its ease of use make it vital in sheet metal product assembly. Nonetheless, being aware of potential issues and employing mitigation methods is critical for producing high-quality welds.

The Process of Spot Welding

Spot welding is a highly efficient and frequently utilized procedure that is especially useful in industries like automotive and electronics. Its capacity to quickly apply tremendous energy to a focused place and its ease of use make it invaluable in connecting sheet metal items. To achieve high-quality welds, however, it is necessary to be aware of potential concerns and to meticulously regulate welding parameters, with precise electrode alignment and pressure control being critical for accurate and consistent outcomes. It involves a series of steps to effectively join various sheet metal product.

Aligning the Workpieces

The workpieces are first aligned and fastened with electrodes. This is an important stage. Proper alignment ensures accurate and uniform welds and reduces the danger of workpiece damage. The copper alloy electrodes must be square and parallel to the welded components. Furthermore, the top and lower electrode faces should be vertically aligned. Such alignment precision ensures all pressures are delivered centrally, preventing twists or distortion during welding.

Applying Pressure

Next, pressure is applied at the welding site using the electrodes. This pressure is essential not only for holding the workpieces together but also for guaranteeing an excellent current channel and confining any molten metal that occurs, preventing expulsion. This force forges the weld nugget during the hold and solidification cycles, potentially increasing its strength. It is critical to remember that changes in force can vary the heat generated due to changes in contact resistance.

Letting the Current Flow

Following that, a suitably high current is passed through the electrodes. The resistance this current encounters raises the material’s temperature, resulting in the melting and fusion of the pieces. This stage, in which the electrical current warms the touching surfaces, is critical for weld formation.

Maintaining Electrode Pressure

Finally, it is essential to maintain electrode pressure while the weld hardens. This technique ensures a strong weld with a small heat-affected zone. This step’s consistency is critical to the weld’s strength and quality.

Several typical issues can develop during the spot welding process, including spatter, high electrode costs, lower weld quality owing to electrode misalignment, cold welds, and indentation on the material surface. Controlling pressure, current, electrode tip area, and welding time cycle is critical for producing high-quality spot welds.

Key Applications of Spot Welding

Spot welding is a popular electric resistance welding technology that is well-known for its adaptability across a wide range of applications. This section focuses on its key applications, demonstrating how this technology has proven indispensable in various industries. The table below sheds light on some of the industries that use spot welding and how they use it.

IndustryDescription
Automotive IndustrySpot welding is essential for assembling car bodies and numerous elements in the automobile industry. Its widespread application here arises from its quick, dependable process, which provides flexibility and durability. These characteristics make spot welding an excellent choice for producing complex automotive components.
Aerospace and RailSimilarly, the aerospace and rail sectors benefit from the ability of spot welding to produce robust, aesthetically beautiful welds. Precision and strength of the process are critical in these industries, where the integrity of each component is vital.
White Goods ManufacturingSpot welding is extensively used to manufacture white goods like refrigerators, washing machines, and air conditioners. Its effectiveness in attaching sheet metal components makes it a preferred method for these appliances’ assembly lines.
Electronics IndustryThe precision of spot welding is critical in the electronics industry. It connects sensitive components in circuit boards, gas sensors, and solar panels, among other things. The process’s appropriateness for sophisticated electrical systems stems from its ability to produce high-quality, repeatable welds.
Medical and Orthodontic ApplicationsThe medical industry, notably orthodontics, benefits from the speed and quality of spot welding. Fastening dental implants and other small-scale, precision-dependent jobs are examples of applications where the process’s accuracy is invaluable.
Building and ConstructionSpot welding now has applications in the building and construction industries. It is used to attach sheet metal components in a variety of structural and architectural applications, demonstrating its versatility in large-scale production.
Metal Furniture ManufacturingSpot welding is essential in metal furniture manufacturing for assembling furniture and accessories. Its ability to swiftly and durably attach sheet metal components makes it a preferred procedure in this business.
Battery ManufacturingFinally, spot welding is used in battery manufacturing to link metal components within battery assemblies, notably for nickel-cadmium batteries. This application emphasizes its importance in precision manufacturing, where consistency of quality is critical.

Advantages of Spot Welding

The process of spot welding is common in all manufactures as it is highly efficient in joining the pieces of metal together. Here are some of its primary benefits:

  • Speed and cost-effectiveness: It takes a matter of seconds for spot welding to be done in most instances. Through this fast method, the labor hours and costs are significantly cut down. It also offers cost effectiveness since it does not require any fillers or extra materials since it can work automatically or semi-automatic.
  • Versatility: It is a process that matches numerous metals and easily connects different metals with each other. This process is particularly useful in dealing with lightweight metals such as aluminum that are hard to weld using conventional welds.
  • Workmanship and Uniform Joints: This process results in robust, consistent bonds. It has an autonomous or semi-automatic functioning, hence, there is minimal manpower needed and reliable, superior beads are outputted.
  • Corrosion Resistance: Such spot welded joints offer higher corrosion resistance and consequently longer lasting durability as compared to others.

Challenges and Limitations

Despite its many advantages, spot welding has several drawbacks and limitations:

  • Limited to certain materials: The use of spot welding is limited to only those materials that conduct an electric current and have a high melting point, limiting its scope further on.
  • Specialized Equipment and High Initial Costs: Such an approach requires specific, often costly devices and can require training. Moreover, the upfront cost compared to conventional welding hardware is also more substantial. Another important item required is a large input.
  • Deformation risk: The vast amount of heat produced during spot welding has a tendency to cause deformation in the materials, thus reducing the quality of the joint made.

Improving Spot Welding Quality

Several aspects must be considered to improve the quality of spot welding:

  • Alignment: Workpiece alignment with electrode for correct welding.
  • Material Selection: Materials choice in context of particular welding applications is essential. These conditions include; metal type, required heat, and pressure among others.
  • Equipment Preparation and Maintenance: The welding equipment needs cleaning and a periodic check-up before any operation can take place. In order to achieve optimal performance correct settings of pressure and temperature need to be applied.

Material Considerations

Material selection is paramount while undertaking spot welding. Due to being good conductor materials of electricity and heat, spot welded fixtures are often made of copper or brass which reduce workpieces’ damages. While selecting materials for spot welding fixtures, you should think concerning the welded metals and needed heat and pressure.

Spot Welding in Modern Manufacturing

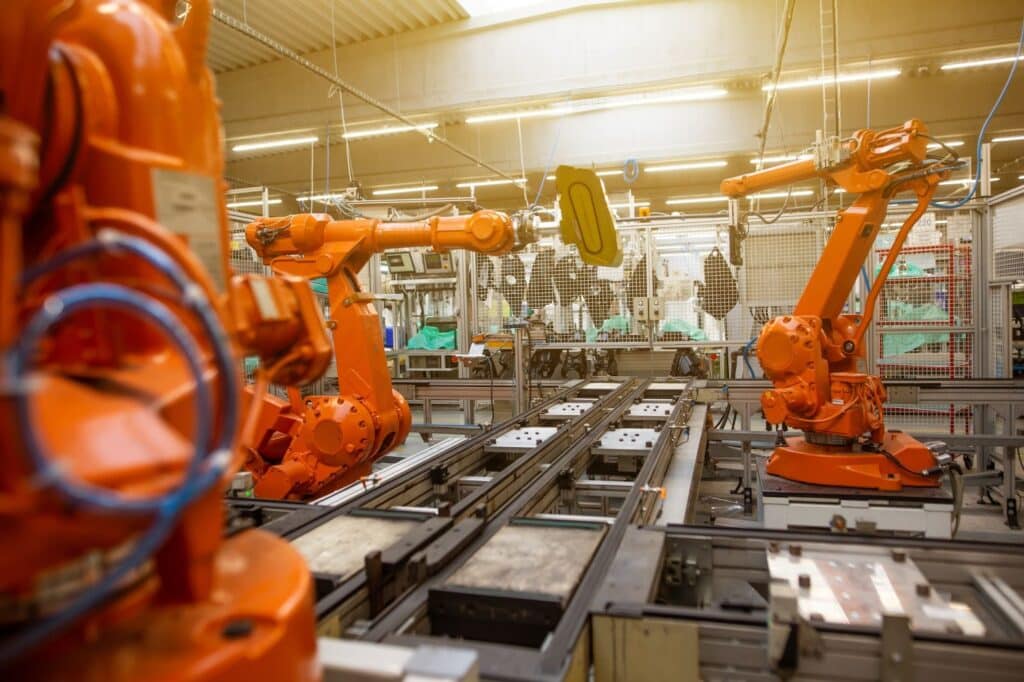

Modern production cannot do without spot welding, for example, in the automotive industry where car parts are manufactured with high precision, reliability and accuracy. Spot welding robots are employed by companies on assembly lines so that cars and a good number of their constituent units can be produced in an economical way. This method also applies in the field of aerospace, rail, electronics, medical, as well as the orthodontic sector. Suitable for handling sensitive electronics and fitting into an orthodontic dental implant. Spot welding is utilized in white goods manufacturing, building and construction, metal furniture and battery manufacturing, thereby demonstrating versatility among different sectors.

Spot welding advantages
Spot welding advantages

Conclusion

Lastly, spot welding is an important electric resistance welding method widely used today in manufacturing. It is widely used in the auto industry because of its speed, accuracy, cost and Its ability to join various sheet metal products quickly. Spot welding comes with a number of benefits including adaptable designs, joint consistency, and corrosion resistivity but they also have their challenges where some materials become hard and need specialized equipment at times.

FAQs

Q: In what conditions is spot welding usually used?

A: Car body and component making utilize spot welding as a common method. It brings together  sheet metal components in white goods, electronics, aerospace, and myriad other fields.

Q: Why is spot welding beneficial?

A: It is because spot welding offers benefits that include speed, economic consideration, versatility, perfect joints, and corrosion resistance. It is a swift and squeaky clean welding process, which can be done automatically in order to obtain high productivity.

Q: Drawbacks with spot welding.

A: Spot welding is restricted to certain materials making it expensive in terms of the necessary equipment. During the process, material distortion may happen and proper alignment of workpiece accuracy in order to have quality welds.

Q: What can be done to enhance the quality of spot welding?

A: Some of the key measures to enhance quality in spot welding include proper positioning of workpieces and electrodes, material selection, and machine maintenance. This involves some elements which can be instrumental in producing standard and accurate welds.

Q: What metals don’t do well with spot welding?

A: The quality of the material under spot welding should be evaluated before it can be subjected to that process as such. However, when choosing materials for spot welding fixtures, conductivity and their ability to resist heat must also be taken into consideration.
