Sand blasting, an age-old industrial technique, has evolved into a key process in modern applications. This method, characterized by its abrasive prowess, has made significant advancements, making it an essential component in tasks ranging from surface preparation to intricate restoration projects. Sandblasting began as a method for cleaning and smoothing surfaces and has evolved into a versatile tool used in various industries ranging from construction to manufacturing.

Sand blasting, also known as abrasive blasting, is a procedure that uses compressed air to propel abrasive material at high velocity against a surface. This can clean, smooth, roughen, or shape the surface.

This comprehensive guide will explain sand blasting, its unique process, materials, benefits and applications. Join us on this exploration of sandblasting – a technique that goes beyond removing surface blemishes.

What Is Sand Blasting?

Sand blasting is a procedure that involves propelling abrasive materials at high velocity to clean, smooth, or shape a surface. The method uses compressed air or other pressurized gases to move abrasive media, such as sand, glass beads, or steel grit, against the targeted surface. The force generated by this process effectively removes contaminants, coatings, or unwanted materials, leaving the surface prepared for further  surface treatment, coating, or restoration.

Sand blasting is a powerful and versatile technique widely employed in various industries for removing rust, paint, scale, or other surface imperfections. Over time, the term “sandblasting” has become somewhat of a misnomer, as the abrasive materials used have expanded beyond sand to include a diverse range of materials, each suited for specific applications. The process is essential in achieving optimal surface conditions in construction, automotive, manufacturing, and more fields.

Sand Blasting Process

Abrasive blasting material
Abrasive blasting material

There are two main processes involved in sand blasting, and they are:

Air-Driven Sand Blasting Process

The target surface is cleaned and prepared for the sandblasting process. This may involve removing loose debris and assessing the type of coating or contaminants present. Then, abrasive material, such as sand, aluminium oxide, or glass beads, is loaded into the sandblasting equipment’s reservoir.

Compressed air is introduced to the system, creating a high-velocity stream that propels the abrasive material toward the surface to be treated. The nozzle is then adjusted to control the spray pattern and focus of the abrasive stream. Pressure settings are adjusted based on the surface material and the level of cleaning or preparation required.

The operator directs the nozzle across the surface in a consistent and overlapping pattern, effectively removing contaminants or coatings. The process may be paused periodically to inspect the treated surface, ensuring the desired cleanliness or texture. After sandblasting, the work area is cleaned to remove residual abrasive material and debris.

Water-Driven (Wet) Sandblasting Process

This process is quite similar to air-driven sandblasting. The target surface is prepared by cleaning and assessing its condition. Then, the abrasive material is loaded into the sandblasting equipment, and water is introduced to create a slurry. Compressed air propels the water-abrasive slurry toward the surface, cleaning and preparing it.

The nozzle is adjusted for spray pattern and focus, and pressure settings are fine-tuned for optimal performance. The operator moves the nozzle across the surface, with the water helping to control dust, reduce heat, and enhance the cleaning process. Periodic pauses allow for inspection to ensure the desired level of cleanliness without damage to the surface. The last stage is cleanup, which involves removing any remaining slurry, water, and debris from the work area.

What Are the Materials Needed for Sand Blasting?

Here are some of the materials used during the sand blasting process:

  • Abrasive Media – Grit Size 80 (around 0.007): Grit size 80 represents the coarseness of the abrasive particles. It is used for aggressive material removal and surface preparation.
  • Sand: While historically used, it’s crucial to be aware that sand produces free silica, which can cause silicosis—a severe lung disease. Many modern applications opt for safer alternatives due to health concerns about inhaling free silica.
  • Aluminium Oxide: Durable abrasive media that outlasts sand by 30-40 times. It is suitable for various applications, providing adequate surface preparation in industries such as metalworking.
  • Silicon Carbide: Known for exceptional hardness and durability. It lasts 40-50 times longer than sand, making it cost-effective. It is also used in applications requiring aggressive material removal, like aerospace and advanced manufacturing.
  • Garnet: Natural abrasive with moderate hardness. It is used in waterjet cutting, sandblasting, and filtration applications. It balances cutting ability and wear resistance.
  • Glass Beads: Spherical glass particles are used for gentle cleaning, deburring, and peening. It is common in applications where preserving surface integrity is crucial, such as in the aerospace or medical industries.

Material That Can Be Sand Blasted

Sand blasting for steel
Sand blasting for steel

Before opting for the sand blasting finish for your rapid prototyping parts or other needs, you should know the compatible material. Some of the compatible materials include:

Glass

Sandblasting is commonly used on glass surfaces for decorative purposes or to create frosted patterns. It provides a controlled way to etch or engrave glass, allowing for intricate windows, mirrors, or glassware designs.

Stone

Sandblasting is employed on stone surfaces for various applications, including monument engraving, architectural detailing, and creating textured finishes. The abrasive action can highlight natural stone textures or produce specific designs for artistic and functional purposes.

Wood

Wood surfaces can be sandblasted for artistic or practical reasons. Sandblasting can enhance wood grain, remove paint or varnish, and provide a weathered or distressed appearance for decorative elements.

Plastics

Certain types of plastics can undergo sandblasting for surface modification or cleaning. It is essential to use appropriate abrasive materials and pressures to avoid damaging or melting the plastic surface.

Steel

Sandblasting is key in preparing steel surfaces for various applications, such as shipbuilding, construction, or industrial equipment. It removes rust, scale, and contaminants, ensuring proper adhesion for coatings or treatments.

Brass

Sandblasting can be applied to brass surfaces for cleaning, engraving, or creating textured finishes. It helps restore the lustre of brass while providing opportunities for artistic detailing.

Aluminum

Aluminium surfaces benefit from sandblasting for paint removal, surface preparation, and achieving a uniform texture. It is commonly used in industries like aerospace and automotive for treating aluminium components.

Pros of Sand Blasting

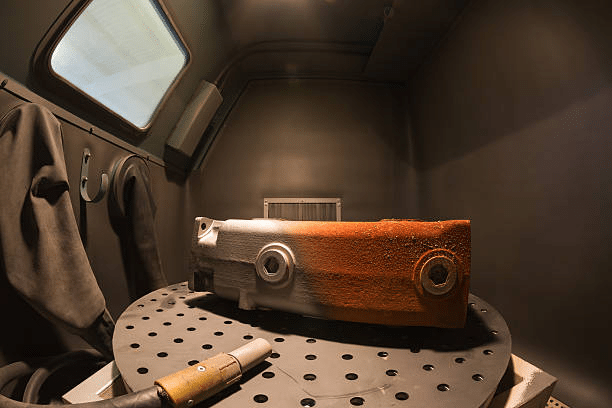

Sand blasting surface finish
Sand blasting surface finish

These are some of the advantages of using the sand blasting surface finish:

Effective Surface Preparation

Sandblasting is highly effective in preparing surfaces for subsequent treatments or coatings. It efficiently removes rust, paint, scale, and other contaminants, ensuring a clean and well-prepared surface. This is particularly valuable in industries like construction and manufacturing, where surface quality is critical for the performance and longevity of materials.

Versatility

One of the key strengths of sandblasting is its versatility. It can be applied to several range of materials, including metals, glass, wood, and stone. This adaptability makes sandblasting a go-to method in various industries, from automotive to art restoration, where different materials require specific surface preparation techniques.

Precision and Control

Sandblasting allows for precise control over the process parameters. Operators can control the type and size of abrasive media, adjust nozzle movement, and regulate pressure to achieve the desired result. This precision ensures that only the targeted material is removed, offering control over the depth and intensity of the cleaning or preparation.

Efficient Cleaning

Sandblasting is known for its efficiency in cleaning surfaces quickly and thoroughly. It is especially valuable in industries where cleanliness is crucial, such as the automotive and aerospace sectors. The rapid removal of contaminants makes sandblasting time-efficient, reducing downtime and increasing productivity.

Rust and Corrosion Removal

Sandblasting excels in removing rust and corrosion from metal surfaces. The abrasive action effectively strips away the oxidized layers, exposing clean metal underneath. This is particularly important in industries like shipbuilding and infrastructure, where metal structures are prone to corrosion, enhancing the durability and structural integrity of the materials.

Cons of Sand Blasting

Even though sand blasting surface finishing has several advantages, it still has disadvantages. Here are some of the disadvantages:

Incompatibility with Smooth Surfaces

Due to its abrasive nature, sandblasting may not be suitable for cleaning or preparing smooth surfaces. The forceful impact of abrasive materials can cause unwanted roughening or etching on surfaces that require a polished finish.

Alternatives such as soda blasting, which uses sodium bicarbonate particles, provide a gentler method suitable for achieving a smooth surface without causing damage.

Abrasive Nature of Materials

The abrasives used in sandblasting, including materials like sand, aluminium oxide, or silicon carbide, are inherently rough. Repeated use of these abrasives on a particular surface can lead to accelerated wear and may compromise the material’s integrity.

This limitation underscores the need to carefully select abrasive materials based on the surface’s characteristics and the desired outcome.

Silica Use and Health Hazards

Silica, commonly used in traditional sandblasting, presents serious health hazards. Inhalation of fine silica dust can lead to respiratory issues, including silicosis, a debilitating lung disease.

Due to these health concerns, many countries, including India, have imposed bans or strict regulations on silica in sandblasting, promoting the adoption of safer abrasive alternatives.

Heat Generation

The high-velocity projection of abrasive particles during sandblasting generates significant heat. This heat can be a concern, especially when treating surfaces sensitive to temperature changes.

Operators need to be mindful of potential heat-related issues, and certain materials, mainly those prone to warping or distortion, may require alternative surface preparation methods to avoid damage.

Precautionary Measures Required

Sandblasting demands rigorous preventive measures to mitigate various hazards associated with the process. Operators must wear the suitable personal protective equipment (PPE), including respiratory protection, goggles, and full-body coverings.

Comprehensive training is essential to ensure operators understand and adhere to safety protocols, minimizing the risk of injuries or health issues from exposure to abrasive materials and airborne particles.

Applications of Sand Blasting

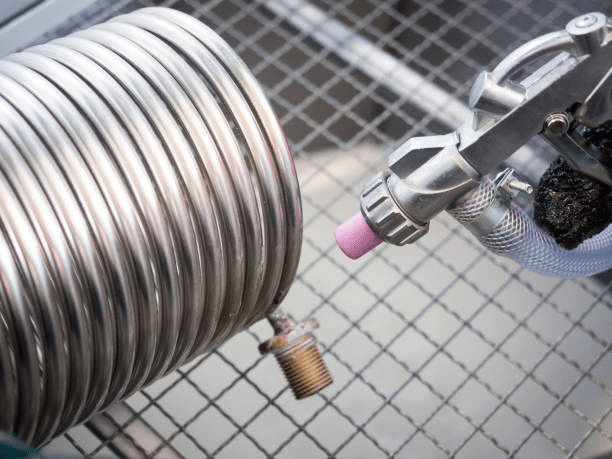

Sand blasting process
Sand blasting process

These are the diverse applications of the sand blasting process:

Metal Surface Preparation

Sandblasting prepares metal surfaces for painting, coating, or other treatments. It effectively removes rust, scale, and contaminants, ensuring proper adhesion of coatings and enhancing the lifespan of metal structures.

Automotive Industry

Automotive applications include paint removal, surface preparation for repainting, and cleaning of metal components. Sandblasting is employed in tasks such as restoring car bodies, refinishing wheels, and preparing surfaces for protective coatings.

Construction and Infrastructure

Sandblasting is used in the construction industry to prepare surfaces of buildings, bridges, and other structures. It removes old paint, coatings, or contaminants, ensuring a clean and well-prepared surface for renovations or new applications.

Shipbuilding and Maritime Industry

Sandblasting is crucial in shipyards for preparing ship surfaces before painting or coating. It removes corrosion, rust, and old coatings from the hull, ensuring the longevity and integrity of the vessel.

Aerospace Industry

In aerospace applications, sandblasting is utilized for cleaning and preparing aircraft components. It helps remove contaminants, old coatings, and oxidation, contributing to aerospace structures’ overall maintenance and performance.

Conclusion

Sandblasting, with its abrasive prowess, remains vital in surface preparation across industries. Its effectiveness can be seen everywhere, from shipbuilding to art studios. However, challenges such as health risks and environmental concerns indicate the need for a more nuanced approach. As industries evolve, the sands of innovation, safety, and sustainability must converge to shape the future of sandblasting.
