Welding becomes a critical chapter in the intricate engineering world, where precision and strength remain paramount. Amidst the array of welding techniques, MIG (Metal Inert Gas) welding emerges as a critical welding practice that helps unite metals to form the backbone of modern industries.

This method, known for its versatility and efficiency, has become indispensable for skilled engineers welding together components. Moreover, the simplicity of MIG welding in machining operations makes it a preferred choice in constructing everything from towering structures to intricate aerospace components.

This article delves into the intricacies of MIG welding. So continue reading as we explore the processes, applications, and materials commonly used in this craft.

MIG welding an automotive part
MIG welding an automotive part

What Is MIG Welding?

MIG welding, or Metal Inert Gas welding, joins metals by generating an electric arc between a consumable wire electrode and the workpiece. This technique also relies on a shielding gas comprising carbon dioxide (CO2) and argon. The gas serves as a protective barrier that shields the molten metal in the weld pool from atmospheric contamination. As the electrode melts, it forms the weld bead, creating solid and durable connections.

an expert fabricating a metal with welding gas
an expert fabricating a metal with welding gas

This meticulous control over the welding environment ensures the integrity of the final weld, making MIG welding particularly adept at producing clean, aesthetically pleasing joints. For this reason, MIG welding remains highly prized for its efficiency, versatility, and applicability across various materials and industries. This includes automotive, construction, and manufacturing.

MIG Welding Process in Detail

MIG welding involves various processes, and each step is vital in achieving precise and durable metal connections. The fusion of these steps, where electric arcs fabricate metal into cohesive structures, defines the essence of the MIG welding process.

an industrial worker MIG welding
an industrial worker MIG welding

Check the various processes below to learn how to MIG weld:

Electric Arc Ignition

The process commences with the striking of an electric arc. A MIG welding machine initiates this arc, creating an intense heat source between the consumable wire electrode and the workpiece. This power hub ensures a consistent flow of electrical energy, a prerequisite for making the welding arc.

Consumable Wire and Weld Pool Formation

A consumable wire is usually selected based on the materials the MIG welder wishes to join. The wire electrode, typically made of a solid steel core coated with a flux material, advances into the arc zone when the welder engages the trigger. Then, the expert continuously feeds the wire into the welding zone.

As the wire melts, it forms the molten weld pool, a liquefied metal reservoir. This pool generates the piece upon which the welder crafts precision joints. This further ensures the structural integrity of the final product.

Shielding Gas

The shielding gas plays a dual role in the fusion of metals. This gas envelope safeguards the molten weld pool from atmospheric contaminants, preventing oxidation and ensuring a clean fusion. It also influences the weld’s characteristics. As such, the choice of shielding gas can impact the arc’s stability, the weld’s penetration, and the finished joint’s overall quality.

Control and Precision

The welder, armed with skill and precision, regulates the movement of the welding gun. This control determines the size and shape of the weld bead. Therefore, maintaining an optimal travel speed and gun angle remains fundamental to achieving uniform and durable welds.

Material Fusion and Solidification

A fusion process occurs as the consumable wire contributes molten metal to the weld pool. The molten metals blend seamlessly, creating a homogenous joint. The fused metals gradually solidify once the welding gun progresses along the workpiece, leaving behind a well-crafted weld bead.

Post-Weld Cooling and Inspection

After the welding is complete, the welded joint undergoes a cooling process. This gradual cooling ensures the integrity of the MIG weld. Thorough inspection, both visual and potentially using non-destructive testing methods, follows to verify that the weld meets the required standards and specifications.

MIG Welding Setup

The welding setup comprises several pivotal components coordinated to ensure optimal conditions for creating durable welds. This includes a welding gun, a power supply, a shielding gas source, and a wire-feed unit.

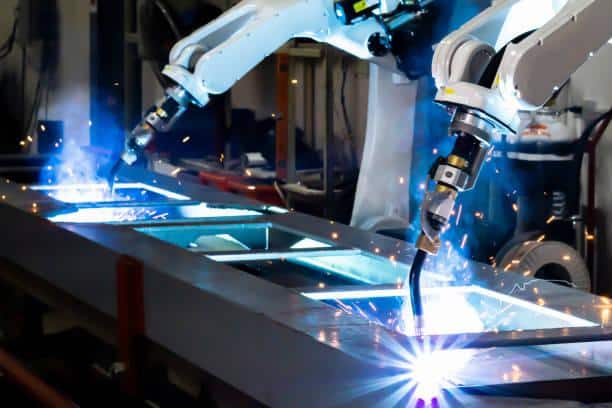

automatic MIG welding machine
automatic MIG welding machine

Let’s explore the vital elements of a MIG welding setup:

Welding Machine Configuration

The MIG welding machine itself stands at the core of every MIG welding setup. Therefore, proper configuration of the machine is still important. The voltage and wire feed speed are adjusted to fit the specifications of materials by welders. However, precise calibration is necessary to achieve welds of the desired strength and integrity.

Consumables Selection

The MIG welding setup involves choosing the right kinds of consumables. The consumable wire and diameter, as well as the composition of shielding gas are determined by material. An example would be welding steel, which may require a different wire and gas combination than aluminum.

Welding Gun and Contact Tip

In the MIG welding process, the welding gun is a wielder’s brush. It contains the consumable wire and guides the arc to strike the workpiece. The tip size and style of contact also must still be selected to ensure proper electrical conductivity, as well as guide the wire.

Workpiece Preparation

The quality of the weld is dependent on appropriate cleaning, removal of contaminants, and suitable joint preparation. Good surface conditions are the guarantee of good fusion, and this requires extensive preparation for MIG welding.

Grounding and Electrical Connections

Stable arc performance depends mainly on adequate workpiece grounding and good electrical connections. The secure electrical arrangement guarantees that welding current flows throughout the entire welding circuit, making erratic arcs less of a threat.

Personal Protective Equipment (PPE)

The MIG welding setup incorporates safety as an integral aspect. Welders must use the appropriate Personal Protective Equipment (PPE), including a welding helmet, gloves, and flame-resistant clothing. Adequate ventilation in the workspace is also essential to mitigate exposure to welding fumes.

Common Materials Used in MIG Welding

The choice of materials in MIG welding largely determines the success and durability of the welded joint. As such, it’s best to understand the properties and applications of these common sheet metal materials to weld a masterpiece.

Check the various materials welders use in MIG welding below:

Carbon Steel

Carbon steel, with its iron-carbon alloy composition, finds its place in industrial machinery and heavy infrastructure. This ubiquitous material in structures ranging from buildings to pipelines responds well to the MIG process. The ability to achieve solid welds and handle thicker sections makes carbon steel a go-to choice for various engineering applications.

Stainless Steel

Stainless steel, well-known for its corrosion resistance and aesthetic appeal, is another prominent material used in MIG welding. From kitchen appliances to architectural elements, MIG welding stainless steel lends itself seamlessly to joining components. Even so, experts carefully consider consumables and shielding gases when dealing with stainless steel to preserve its corrosion-resistant properties.

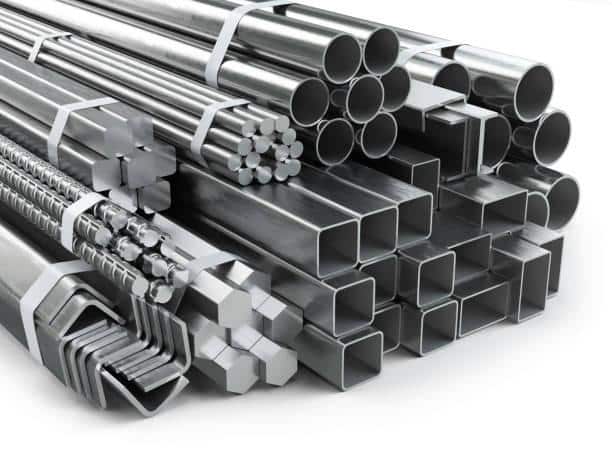

stainless steel material
stainless steel material

Aluminum

Aluminum finds its niche in aerospace, automotive, and marine applications owing to its lightweight and corrosion-resistant properties. However, MIG welding aluminum demands delicacy due to its high thermal conductivity. Welders must navigate challenges such as proper wire selection, optimal shielding gases, and precise control of heat input to achieve quality aluminum welds.

Copper and Its Alloys

Copper and its alloys, including bronze and brass, add conductivity and malleability to MIG welding projects. Copper welds are commonly employed in electrical components, tubing, and decorative applications. Nevertheless, welding copper requires thorough attention to prevent oxidation.

stack of copper bars
stack of copper bars

Nickel-Based Alloys

Nickel-based alloys thrive in extreme conditions such as high-temperature and corrosive elements. As a result, they remain critical in aerospace and petrochemical applications. MIG welding these alloys demands expertise in handling their unique characteristics. Welders must tailor their approach, considering factors like controlled heat input and suitable filler metals to maintain the alloys’ integrity.

Cast Iron

This iron alloy is widely used in engine parts and machinery. Because cast iron is brittle, it presents some problems. Pre-heating and close control of the cooling process prevents cracking in MIG welding cast iron. When dealing with cast iron, experts tend to use special consumables and welding methods that ensure the weld is successful.

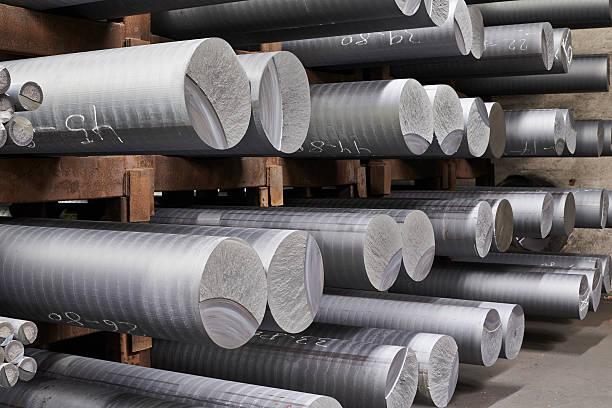

cast iron rods
cast iron rods

Titanium

When strength and lightness are key, as in aerospace an Titanium, which has a high melting point and is sensitive to heat also presents difficulties. To compensate for these difficulties and preserve the vital characteristics of titanium, welders employ specialized techniques like pulsed welding.

Advantages and Disadvantages of MIG Welding

MIG welding is a powerful tool for precise, strong fabrication of all kinds of materials. But like any welding process, it has its limits.

Below are the advantages and disadvantages of MIG welding:

Advantages of MIG Welding

  • High Productivity: MIG welding is fast, and thus well suited to large-scale engineering jobs like custom parts for industrial machinery. Because it is continuous wire feed and automated, the welds are quick. Therefore MIG welding is an excellent choice for work where deadlines are tight and labor costs reduced.
  • Versatility in Materials: MIG welding is remarkably versatile in joining materials. MIG welding seamlessly joins carbon steel, aluminum and stainless steel. This means engineers can use the most suitable materials for each application.
  • Clean Welds with Minimal Cleanup: MIG welding produces neat, attractive-looking welds. The shielding gas prevents the effects of atmospheric oxidation and so there is little splatter. For this reason post-weld cleanup can be kept to a minimum.
  • Minimal Welding Skill Required: Compared to other welding processes, MIG is relatively simple to learn and use. This method’s inherent structure and semi-automation enable novice and seasoned welders alike to use it. That ease of use makes it so popular that a broader workforce can be utilized.

Disadvantages of MIG Welding

  • High Initial Setup Costs: Upfront costs in installing MIG welding equipment, including the welding machine itself as well as wire-feed unit and shielding gas apparatus are huge. This could prove to be a headache for smaller engineering firms struggling with cash flow.
  • Sensitivity to Contaminants: MIG welding is easily contaminated by rust, oil and paint on the workpiece. To produce high-quality welds, proper cleaning and preparation are essential. This sensitivity may require an extra stage in the metal fabrication process, especially when dealing with existing materials that have to be reintegrated and carefully prepped.
  • Less Suitable for Thick Materials: While MIG welding has less penetration in thick materials, TIG welding does not. However, this can be a problem when deep weld penetration is required for engineering applications that demand improved structural integrity.
  • Welds May Require Finishing: While MIG welding produces clean welds, the appearance may require finishing in specific applications. This particularly applies to industries where quality surface finishes are critical. This includes architectural structures or components visible in the final product. Hence, additional finishing processes might be necessary to achieve the desired look.
  • Limited Welding Positions: MIG welding is most effective in flat and horizontal positions. On the other hand, performing vertical or overhead welds may pose challenges. This limitation can impact its suitability for certain engineering projects requiring specific welding positions.

Industrial Applications of MIG Welding

MIG welding applies in various industries. MIG welding is particularly valuable in crafting intricate designs, ensuring the production of durable and high-quality custom sheet metal products. Thus, the flexibility of MIG welding strengthens different industries, guaranteeing the durability of structures in aerospace, energy, manufacturing, and more.

Here are the various industrial applications of MIG welding:

Automotive Manufacturing

MIG welding is a cornerstone in the automotive industry, contributing to the assembly of precise vehicle components. From welding body panels and frames to exhaust systems, MIG welding guarantees the strength of cars. In the assembly of a car chassis, for example, MIG welding joins steel components providing the strength performance, and safety required.

Aerospace Engineering

Aerospace engineering requires precision and lightweight durability. MIG welding is able to fulfill these high demands. It covers joining aircraft parts including fuselages, wings and engine structures. For example, It is essential to join aluminum alloys to make aircraft wings. Here both lightweight properties can be combined with strength.

Shipbuilding and Maritime Industries

MIG welding is used in the construction of ships and offshore structures for maritime industries. The building of sturdy hulls and the intricate parts that make up marine vessels from welded steel plates are included. MIG welding guarantees the toughness and sound condition of shipbuilding in demanding marine environments.

Construction Industries

MIG welding is also used to fabricate a variety of structural elements for buildings, bridges, and other projects. It refers to welding steel beams, columns, and other structural elements in particular.

Energy Sector

In the energy field, MIG welding is used in building and maintaining power plants, pipelines, and other energy constructions. Such a technique is often used for welding components of pressure vessels, pipelines and structural supports. MIG welding provides secure and leak-proof joints in installing pipelines for transporting natural gas.

Common MIG Welding Challenges

Some common MIG welding problems include poor gas coverage and material contamination, which require experienced attention. Check out the common challenges of MIG welding below:

Spatter Formation

Spatter is unwanted molten metal droplets that fall off the weld. It can make a messy look and may need further cleaning efforts. Spatter control is a matter of adjusting welding parameters, maintaining an appropriate gun angle and choosing the proper shielding gas.

Porosity

Pores are gas pockets trapped in the weld. It is basically caused by insufficient coverage of the shielding gas, thus permitting impurities to be introduced in welding. This weakens the weld and introduces defects, impairing its integrity. Preventative steps include optimizing gas flow rates, cleaning the workpiece, and using dry consumables.

Burn-Through in Thin Materials

High-heat welding in thin materials can lead to burn-through, leaving holes and weakening the weld. One way to prevent burn-through is setting the heat lower, using a slower wire feed speed, and applying pulse welding.

Incomplete Fusion

Poor fusion occurs when the weld metal does not penetrate and fuse with the base metal. This results in weak joints. Welding techniques and parameter adjustments must be used to ensure successful fusion throughout the weld.

Cracking

In MIG welding, cracking is the formation of cracks in weld material that impair its structural integrity. Quick cooling or overheating can both lead to cracks. As a result, specialists choose proper heat control and consider material thickness carefully to avoid this problem.

Conclusion

In various metal-fabricating industries, the MIG welding process turns out to be critical. But choosing the right material for MIG welding is still a very difficult task, because it requires understanding in great detail what materials are capable under what situations and how they respond to being made into one object with another.MIG welding is one of Zintilon’s areas of special expertise. We specialize in dealing with the problems of choice and selection, making sure that materials are used appropriately. Reach out to us today for guaranteed precision and strength in every weld.
