    Milling is the core of manufacturing and craftsmanship. It converts materials and turns them into precise and useful shapes. When it comes to milling, whether the machine is working on metal or wood, the process tends to vary. Metal milling and wood milling are two different machining processes. However, both of them have similar principles of material taking out.

    The knowledge about the distinctions between these two processes has no other function than to demonstrate the finest aspects of handwork but also manifest the deep influence that material selection can have on the milling process. This guide explores all you need to know about the differences between metal and wood milling.

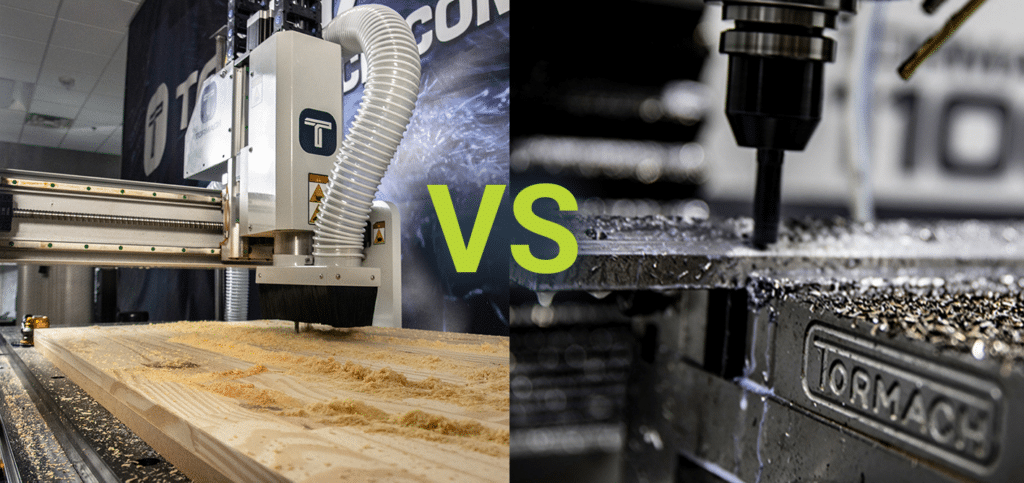

    Metal milling vs wood milling
    Metal milling vs wood milling

    Overview of Metal Milling

    Metal milling is the most crucial precision machining process that is used mainly for shaping metal workpieces to the required specifications of dimensions and geometry. This process uses rotating cutting tools that make intricately shaped contours, ready-to-function components, and surface removal from the metal objects.

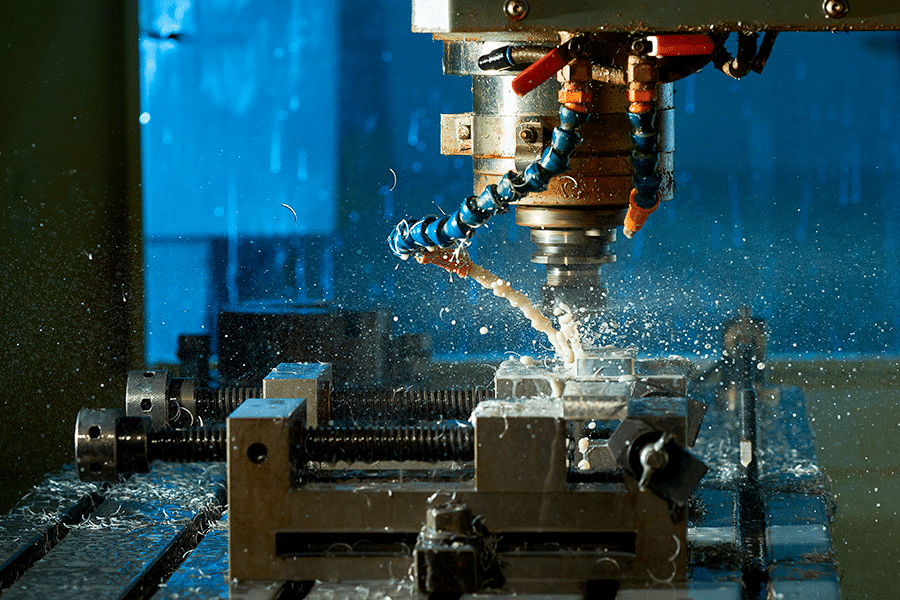

    Metal milling
    Metal milling

    Definition and Characteristics

    Metal milling is a machining technique that removes the metal materials from various metal workpieces creating an exact or particular form. It does it with the help of circular cutting tools like milling bits so they can mutilate the surface of metal workpieces, chopping the last bits and giving it the right shape or form. Metal milling features high accuracy, small tolerance margin, and wide versatility. It is vital for diverse industries, including, but not limited to, aerospace, automotive, manufacturing, and engineering.

    Common Metals Used in Milling

    Here are the common metals used in milling:

    • Steel: Milling’s wide use of steel is mainly due to the material’s versatility, strength, and ease of access. It is possible to machine it with various cutting tools and methods, rendering it a great choice for a wide range of uses.
    • Aluminum: Aluminum is preferred due to its low weight, resistance to corrosion, and ease of processing. It is widely used in aerospace, automotive, and consumer electronics for components such as brakes and chassis that require high strength and low weight.
    • Stainless Steel: Alloyed from more than one chemical element other than carbon, stainless steel can produce much-needed corrosion resistance and mechanical properties in such applications where durability and hygiene are of importance..
    • Titanium: Titanium is a very popular material for its superior strength-to-weight ratio and ability to resist corrosion. This makes it a great choice for the aerospace, medical, and military industries.
    Metals used in milling
    Metals used in milling

    The Process of Metal Milling

    Metal milling is characterized by multiple steps such as the utilization of specialized equipment for deductions of metal workpieces to obtain precise geometries and decorations. To a certain extent, it covers different techniques and approaches adjusted to specific needs and the desired results.

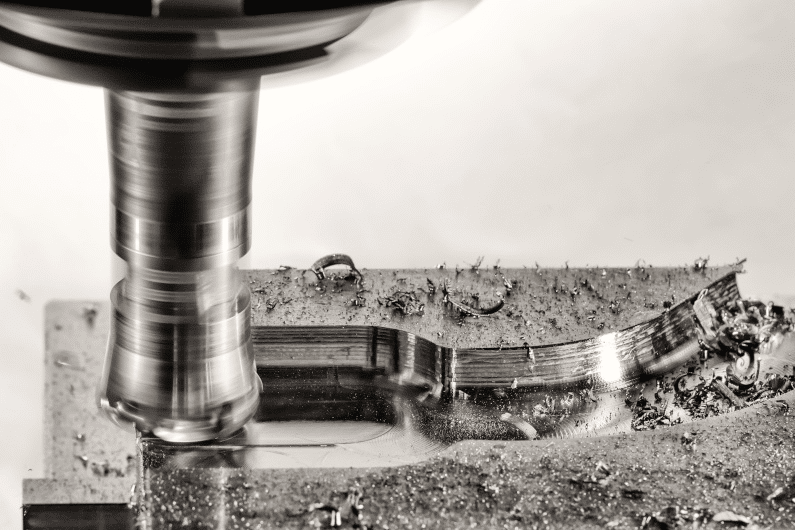

    CNC metal milling
    CNC metal milling

    Step-by-Step Breakdown

    Below is a step-by-step breakdown explaining the process of metal milling:

    • Workpiece Preparation: It all starts by obtaining a sufficient grip of the metal workpiece onto the milling table or fixture using clamps or a vise. True setup and mounting lead to stability and reliability in the machining process.
    • Tool Selection: The right cutting tool should be chosen based on the materials to be machined, desired geometry features, surface finish demands, and cutting permits.
    • Setting Cutting Parameters: Machining cut parameters including cutting speed, feed rate, and depth of cut for several factors such as material properties, tooling, machine restrictions, and desired machining outcomes are tuned.
    • Machine Setup: The milling machine is arranged accurately to perform the machining operation, which may involve tool mounting, programming of the toolpath, speed adjustment of the spindle, and application of coolant.
    • Machining Operation: Milling is initiated when the milling cutter enters in contact with the metal workpiece and cutting starts. The cutter is capable of very high angular speed and as a result, it chars the chips and heads into the workpiece by the toolpath trajectory. Machining operations can vary from facing, contouring, slotting, drilling, and profiling.
    • Monitoring and Quality Control: During the entire machining process, operators check critical parameters, like those of cutting forces, tool wear, surface finish, and dimensional accuracy. The introduction of quality assurance procedures, like constant observation of machined attributes and part dimensions, guarantees the accuracy of the finished parts.
    • Finishing Operations: Subsequently, there can be certain finishing operations such as abrasive and CT machining to attain the desired surface finish and dimensional accuracy. This could be an extended milling step, finishing, polishing, deburring, or a coating process to improve aesthetics and functionality.
    • Final Inspection and Verification: The part from machining and finishing is followed by a series of final inspections and verifications to check compliance with design specifications and quality requirements.

    Types of Metal Milling Machines

    Here are the common types of CNC metal milling machines:

    • Vertical Milling Machine: A vertical milling machine has its spindle axis verticalized along the machine axis. This provides for ease of setup and operation immediately.
    • Horizontal Milling Machine: Horizontal milling machines have the spindle in a horizontal position, which makes them applicable for arranging big heavy parts and accomplishing a few operations such as face milling and slotting horizontally.
    • CNC Milling Machine: CNC machines are added with computerized control systems which are meant to automate milling work. They could be versatile in providing operators with fine control over the angles of cutting, design of toolpath, and reproducibility.
    • Universal Milling Machine: The universal milling machines on almost all tables. They are allowed either to turn or to raise them, which gives a possibility to mill operations in both horizontal and vertical planes.

    Tools and Equipment for Metal Milling

    There are different tools and equipment needed for metal milling and they are categorized into the following:

    Cutters and End Mills

    Cutter and End mill are important tools that cut and shape metal workpieces used for precise finishing. With these tools, houses are built in different sizes, shapes, and milling materials depending on the characteristics of the machines used. In contrast to traditional end mills, the cutting edges are quite versatile and allow for various machining operations such as contouring, slotting, and profiling..

    Metal milling tools
    Metal milling tools

    Coolant Systems

    Lubrication, cooling, and chip eviction are the main roles of coolant systems that are already installed in every metal milling plant. The implication is the improvement of the machining performance and extending tool life. They are designed to pump coolants to the work zone, thereby decreasing the friction, evacuating heat, and carrying away chips and dirt. To avoid too much friction, coolant systems are used in the processes of metal milling.

    Challenges in Metal Milling

    Several challenges are usually encountered in the milling process and some of them are:

    Hardness and Durability Issues

    The hardness and strength provided by metal materials is characteristic of some alloys such as stainless steel and titanium. The machining process is quite complicated and the machining tools and parameters have to be ideal for the resistance of cutting of these materials to be overcome. Tool wear and breakage often happen due to the abrasive attributes of metal chips and the highly mechanical forces in every operation.

    Precision Requirements

    Metal machining operations  often involve the machining of parts into narrow tolerances and undoubted geometric specifications. The precision of such high levels is highly dependent on careful order instructions, the right toolpath programming, and proper controlling of the cutting parameters.

    Overview of Wood Milling

    Wood milling is the backbone of any woodwork that crafts, cuts, and then shapes wood to form various structures, products, and components. The CNC wood milling process begins with taking a rough wooden material or lumber and ending with completed products for home furnishing or construction.

    Wood milling
    Wood milling

    Definition and Characteristics

    Wood milling is a process of cutting, shaping, and dressing wood using tools and machinery that have been designed specifically for woodwork. This involves several methods, which include cutting, planning, routing, and drilling, to obtain the required lengths, profiles, and textures. Wood milling is also versatile and lets artisans work with wood of various species, grains, patterns, and appearances to produce original and personalized articles.

    Common Types of Wood for Milling

    Here are the different types of wood that can be milled for various processes:

    • Hardwoods: By processing wood from broad-leaved trees, you get hardwood which is known for its heavy density and great durability. These hardwoods are popular choices in the wood milling process and include oak, maple, cherry, walnut, and mahogany.
    • Softwoods: Softwoods originate from conifers, which are a type of trees that are evergreen, and tend to be less dense than hardwoods. Among the commonly used softwood species which are milled, include pines, cedars, spruces, and firs.
    • Engineered Wood Products: Engineered wood products are manufactured wood materials made up of layers of wood fibers or veneers that are glued together with adhesives. Everyday milling operation is illustrated by engineered wood products such as plywood, MDF, particleboard, and oriented strand board (OSB).

    The Process of Wood Milling

    Wood milling is a complex operation which involves different tests and apparatuses to change the raw wood materials into useful components and products. From coarse lumber to the finest finished pieces, wood milling includes a group of steps targeted at reshaping wood.

    Wood for CNC milling
    Wood for CNC milling

    Step-by-Step Breakdown

    Here is a step-by-step breakdown of the wood milling process:

    • Selection and Preparation of Wood: It starts by choosing appropriate wood material that takes into account features like species, pattern of grain, and moisture. Next, the wood is ready by chopping off the edges, planing the surfaces, and getting rid of any dents or defects.
    • Milling and Dimensioning: Flat and dimensioned woods are made by planers and jointers which are milling machines that flatten the timber into the required width and thickness.
    • Cutting and Shaping: Lumber is inserted into the saw table for cutting apart and shaping by using a group of various cutting tools such as table sawers, band saws, and routers as machine assistants.
    • Joinery and Assembly: Woodworking practices are used to glue pieces of wood to create frames and assemblies. These joints and element assemblies are secured using clamps and glue as well as different types of fasteners like screws and nails.
    • Surface Finishing: The process includes sanding, refining, and finishing the wood surfaces by hand. The finishing process comes in at the end, therefore it’s included in the process to safeguard the wood and put on the looks of different colors and grains.
    • Quality Control and Inspection: During milling, the boards for defects, straightness, and the quality of the finish; Any inconsistencies or faults are covered to make sure that the final version of this product completely matches existing standards and the stated specifications.
    • Final Assembly and Installation: Once timber and other natural wood parts are made in the shape and size of the required design, wood components are assembled into the final product.

    Types of Wood Milling Machines

    There are different types of wood milling machines and they are:

    • Jointers: Flaters help to evens the one face and straightens the one edge of the rough-sawn lumber, to create a level reference plane for other milling processes.
    • Planers: Sharp knives are used to reduce the thickness of log sizes and distribute uniformity in material respectively.
    • Table Saws: Table saws are versatile cutting machines that enable one to make straight-line cuts, crosscuts, and rip wood stock. They perform this function of measuring and cutting large sheets accurately.
    • Routers: A Router is a versatile tool used for creating edges and profiles, cutting joins, and carving designs into wood.

    Tools and Equipment for Wood Milling

    These are the classifications of the tools and equipment for wood milling:

    Router Bits and Planer Blades

    Routing bits, and planer blades are some of the tools that are tightly linked to roughing milling, providing precision cutting and shaping of the crank for different tasks in woodworking. Routers are configured with different shapes and sizes, the most popular being, standard, round, T-shaped, wave, and fluted, and the less common ones being flush cutting bits, dovetails, etc.

    While the difference between these two would be the alternative between kerfing and planing, planer blades are used in planers to remove excess material and flatten wood surfaces and therefore ensure uniform thickness and smoothness.

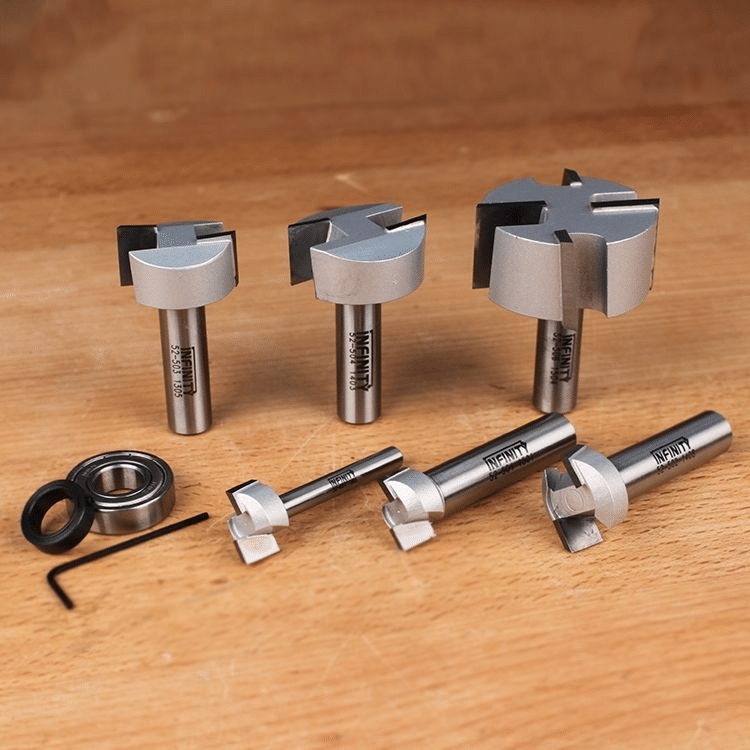

    Equipment for wood milling
    Equipment for wood milling

    Dust Collection Systems

    The designed dust collection systems are incredibly essential in woodworking mills since they capture and take away the dust and debris prevailing in the machining operations. Dust collection systems usually are a combination of exhaust collectors, hoses, ductwork, and filters that are all responsible for sucking lots of woodworking dust out of woodworking machines and work facilities. .

    Challenges in Wood Milling

    Below are the various challenges encountered in the wood milling process:

    Grain Patterns and Knots

    Grain variations and knots in wood are the primary difficulties that occur during the process of milling. Some wood species have distinct grain patterns which impact the cutting resistance and surface finish and thus Machinists should watch out for them. Having a node that is created by a branch in the wood or any other irregularity in it hinders the cutting tools’ functioning and gives rise to tear-out or chippings.

    Controlling Splintering and Tear-Out

    The other challenge is control of splintering and tear-out, especially when doing it across or against the grain. Plummet implies the separation of the wood fibers along the grain which results in ragged or coarse borders. Shoveling indicates a splitting of the fibers from the working body causing the surface to be uneven or blemished. Controlling splitting and splintering means choosing the correct tool type, cutting methods, and feed speed to minimize the possibility of wood damage.

    Key Differences Between Metal and Wood Milling

    These are the major differences between metal and wood milling:

    Material Properties

    This is the first difference between the two processes. Normally, metals are much harder than wood, stand up to higher density, and possess more strength, which therefore requires the use of precise cutting tools and techniques for effective metal removal. Wood, instead, is not so hard, fibrous, and is prone to splintering and tear-out, which requires different machining strategies to yield smooth surfaces and dimensionally exact components.

    Tools and Techniques

    In the case of metal milling and wood milling, different tools and methods are being utilized, with the predominant one selected depending on the specific characteristics of the material being processed. Metal milling incorporates rotating cutter tools made of hard materials like carbides and high-speed steel, whereas for wood milling the blades and bits of the router, planers, and saws are usually optimized to cut wood glass fibers.

    Metal milling vs wood milling1
    Metal milling vs wood milling1

    Finished Product Applications

    While wood and metal products undergo milling processes that are somehow different. Metal milling is frequently utilized in the field of aerospace, automotive, and manufacturing product machining to create highly accurate, complex components, machine parts, and structural elements used in applications that require exceptional strength and reliability. While the former mainly focuses on the raw materials, the latter uses the logs from the tree farms and finds applications in the production of plywood, furniture, cabinets, and building materials.

    Similarities Between Metal and Wood Milling

    Here are some of the similarities between metal and wood milling:

    Underlying Principles

    Although they are dissimilar, the winding and guiding occurrence in the metals and wood milling are based on a common underlying principle which is attached to the fundamental concepts. The same approach stands both through cutting tools moving around workpieces which are controlled by the program parameters and toolpaths. The idea of machining methods selection, machine setup, and cutting strategies applied to metal and wood machining highlight the accuracy, efficiency, and quality of the job.

    Machine Components

    The metallic milling machines and the wood milling machines have the same components and subsystems that are used for material removal and the participation of the tools. Both machines, spindles are used inside to rotate the cutting tools as well as to hold them, fixtures are present which are used for positioning and holding the workpiece, control system that helps feed the machine and regulate cutting parameters.

    Selection of Milling Type Based on Material

    Factors to Consider

    Although the choice of milling type to be used depending on the material to be machined involves a few things being considered, the material’s nature is the most critical. It includes the material’s hardness and tensile strength, its machinability, its surface finish demands, its tolerances in terms of dimensionality, and the part’s geometric complexity.

    Examples of Decision-Making Scenarios

    For instance, when metal cuts very soft materials like wood or plastic, wood milling as in routing is to be considered since routing involves low cutting force and no tool wear. The other side of the coin is, when milling, for instance, stainless steel or titanium, metal milling techniques including milling or drilling with precise cutting tools, which may be necessary, for this kind of hard material, while being rigidly fixed to obtain expected machining results.

    Safety Considerations in Milling

    Here are some safety considerations in the CNC milling process:

    Protective Gear

    Safety is ranked first in all milling operations; therefore, workers should be provided with the right protective gear while in the machine to prevent machine accidents. Safety glasses or goggles to defend the eyes from flying splinters and debris, ear defenders to reduce sound levels coming from the machine operations, and gloves to protect hands from sharp surfaces and hot surfaces are among the measures to be taken for safety purposes.

    Workplace Safety Protocols

    Observing those particular guidelines set by the manufacturing workplace in addition to personal protective equipment can be a great way to avoid hazards in milling environments. Implementing routine equipment maintenance, hazard assessments, and emergency response protocols would ensure a safe and healthy work environment that would benefit all related personnel involved in the milling operations.

    Future of Milling Technologies

    This is the future of milling technology and how it’s going to shape the future of the manufacturing industry:

    Innovations in Milling Machines

    The technology of milling will be determined by the progression of evolving in a whose product will be smarter machine, automation, and digitalization. Innovations such as CNC machining, 3D printing and hybrid machining systems are changing the way manufacturing is done and the capabilities of machining processes as a whole. All of which  will constitute a basis for performance improvement and machinery productivity.

    cnc milling
    cnc milling

    Predictions for Materials Processing

     Materials processing will be the subject of anticipation for the future emerging in materials science, where the materials of new composites, nanostructured materials, and smart materials with customizable properties will be developed for specific uses. Moreover, eco-friendly milling practices in materials processing are also going to be major contributors to addressing the environmental issues and coming out of this with a brighter future for manufacturing and materials processing industries.

    Conclusion

    Milling is the best asset for molding varieties of materials like metals and wood into different commodities. On the one hand, metal milling relies on harder materials, and it uses specialized tools for CNC machining in industries like aerospace. Contrastingly, wood milling uses softer materials, and also demands other tools for woodworking and construction. While both of them have their features, both of them follow the basic principles and use the same machine components. Making the right selection for the milling process entails balancing the needs such as the properties of material, safety, and outcomes required. Contact Zintilon for all your metal and wood milling needs. We provide the best services and we will be glad to partner with you.
