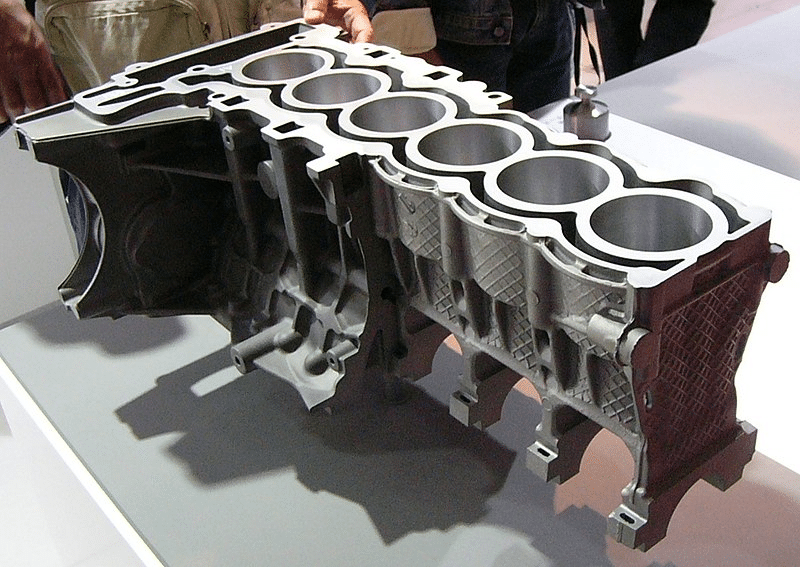

DIe cast magnesium for automtive
Die cast magnesium for automtive

This article explores the advancements in high pressure die cast magnesium (HPDCM) for automotive applications, looking at its properties, manufacturing process, benefits, and growing significance in the automotive sector.

Automotive Industry’s Pursuit of Lightweight and Strength

The automotive industry has stepped up its search for lightweight materials without sacrificing structural integrity and safety in response to stricter regulations and consumer demands for more fuel-efficient vehicles. Magnesium alloys have become the most popular in this effort because of their exceptional strength-to-weight ratio and combination of lightweight qualities.

Fuel Efficiency and Emissions Reduction

The most important factor driving the increasing use of lightweight materials such as magnesium alloys in vehicles is the target of better fuel efficiency and lower emissions. Switching heavier materials with magnesium components helps reduce vehicle weight, which further contributes to the efficient usage of fuel and a small quantity of greenhouse gases.

This weight reduction allows for downsized engines and optimized powertrains, making these cars even more eco-friendly.

Performance and Safety Considerations

Lightweight materials are essential for fuel efficiency, the performance, and safety of automobiles; however, performance and safety are pronounced issues in automotive design and engineering. Magnesium-based alloys, especially those made using the HPDC casting technique, show extraordinary strength and impact resistance, among the other mechanical properties of these alloys.

The Unique Properties of Magnesium

Many distinctive qualities of magnesium make it a desirable material for die casting project for automotive use. Comprehending these attributes is essential to appreciate their increasing importance within the automotive sector.

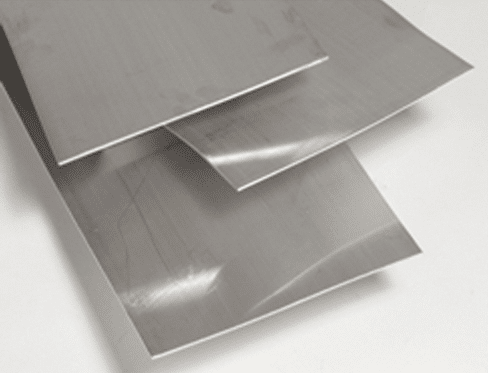

Magnesium
Magnesium

Lightweight Yet Strong

An outstanding property of magnesium is that it has an excellent strength-to-weight ratio. Unlike heavy metal alloys such as steel and aluminium, magnesium alloy is much lighter yet with high mechanical strength and stiffness. This feature enables automakers to repudiate vehicles not only without diminishing the structural integrity but also providing a possibility of enhanced fuel efficiency and performance.

Excellent Castability

Magnesium is also known for its superior castability, especially when it passes through the high-pressure die-casting (HPDC) process. HPDC allows manufacturers to make auto parts with intricate and complex geometries that are incredibly accurate and uniform. The molten aluminium alloy is introduced into well-defined moulds under high pressure, and that’s why it can have complex geometry shapes with little porosity and flaws. This kind of flexibility in production gives rise to the possibility of producing lightweight but highly robust parts. This, in turn, leads to the remarkable design and performance of the vehicles.

Corrosion Resistance

Besides the fact that magnesium is lightweight and castable, magnesium alloys are particularly suited for cars compared to other vehicles. Due to magnesium’s unique ability to create a protective oxide coating on that layer when exposed to air and moisture, the metal exhibits such corrosion resistance.

magnesium die cast for automtive
Magnesium die cast for automtive

High Pressure Die Casting of Magnesium

In the automotive industry, high-pressure die casting (HPDC) of magnesium is a commonly used manufacturing process for producing intricate and lightweight components with high precision and efficiency. The HPDC process and its essential elements are summarised in this section.

Definition and Process

High-pressure die Casting (HPDC) of magnesium is a popular way of making complicated, lightweight magnesium items for the automotive, aerospace, and personal computer loose fields. In this procedure, the Magnesium alloy is melted and poured into a nozzle by high pressure, which often holds the range between 1500 psi to 10,000 psi (10 – 70 MPa), through either a hydraulic or mechanical press. Here is a look at the process:

Mould Preparation

The manufacturing of HPDC parts starts with mould manufacturing, which is usually done from steel and involves some very accurate replication of the part’s final shape. Moulding preparation comprises cleaning, lubrication and assembly and guarantees an electrically conductive connection between the conductor and moulding supplied by the pins.

The shape of the mould cavity is so specific that magnesium alloy, an alloy in a liquid state, can flow through it, and the shape of the part can be created in the end.

Metal Injection

Once a mould is set up, the injection of molten magnesium alloy takes place inside the cavity under high pressure, and this stage is a professional process. When melting down metal, the molten metal is heated to the required temperature and forced into the mould at high velocity using a hydraulic or another type of press.

The moulding process with high injected pressure ensures the part is filled with no porosity and the shape of intricately detailed features is replicated well.

Solidification

Then, the moulding of molten magnesium alloy is achieved through high pressure and controlled cooling conditions within the mould die. The solidification starts from the mould walls and goes to the centre, creating an evenly distributed grain structure and the mechanical properties of the components. Accurate shrinkage and porosity reduction of the element are obtained due to the comprehensive control of solidification parameters.

Ejection

The mould then catalyzes the casting process. The newly formed magnesium component is ejected from the mould cavity at the end of the procedure. The ejectors, which could be the ejector pins, hydraulic systems or others, are found to be the ones that easily retain the pieces and separate them from the mould without causing any harm.

Subsequent downstream operations, trimming, burring, and finishing precisely yield the final specifications and surface quality, are often executed to complete the manufacturing process.

Advantages of High Pressure Die Casting

Magnesium components for automotive applications can be produced efficiently thanks to the many benefits of automotive die casting. Several of the main advantages of HPDC are thoroughly examined in this section.

Design Flexibility

High pressure die casting makes it possible to accomplish all other manufacturing processes at a much higher level, and ID is one of the processes in which the complexity of the geometries and features are integrated. The mould is here to provide absolute accuracy for the design of many complex components with thin shapes, small sizes, and details, leaving a designer room for optimization of performance, functionality, and aesthetics.

High Production Rates

One of the unique features of this HPDC process is that it can achieve high production speed with constant control over quality and dimensions. This speedy cycle of operation and continuous operation of HPDC machine manufacturers enabled them to produce massive numbers of magnesium components quickly and at a low cost.

It is highly crucial, especially since vehicle production levels usually are high, and this has to be kept in mind if the automotive industry is to meet the demands of the consumers.

Tight Tolerances

The capability of HPDC enables the development of magnesium components with close dimensional tolerance. This way, fit and assembly in automotive applications are precisely achieved. Constant pressure is maintained in the casting process, which leads not only to the good filling of the mould, minimises differences in part dimensions, and allows uniformity across the production runs.

Close-fitting dimensions are very important for the instrument’s operation, reliability, and effectiveness, as well as for safety and important parts.

Surface Finish

HPDC produces magnesium components which offer perfect surface quality and features that virtually eliminate the need for secondary operations such as machining and buffing. It is an HPDC that promotes smooth, flat, and uniform surfaces, bringing better aesthetics and high functional performance to car industry products.

Magnesium alloys
Magnesium alloys

Moreover, a good feature is the capacity to get elements like business logos, textures, and patterns into mould cavities to make magnesium parts look presentable.

Magnesium Alloys for Automotive Applications

Magnesium alloys are crucial in advancing automotive technology, offering a unique combination of lightweight properties, high strength-to-weight ratio, and excellent castability. This section explores the significance of magnesium alloys in automotive applications and highlights three key alloys utilized in the industry.

AZ91: A Workhorse Alloy

AZ91 is the most widespread magnesium alloy in the automotive industry due to its remarkable castability and the solid combination of strength, anti-corrosion properties, and high elasticity. AZ91 alloy represents the blended composition, about 9% aluminium and 1% zinc, minimal manganese and silicon, with pct of strength but weightless.

This alloy is especially favourable for its lightweight nature, which makes it appropriate for applications where weight loss is desirable, such as engine parts, vehicular transmission cases, and structural components. This ductile alloy, being very light in weight, is strong and rigid enough to fulfil application requirements in automotive environments, finally contributing to enhancing fuel efficiency and overall vehicle performance.

 AM60: Balancing Strength and Ductility

AM60 is another organizational magnesium alloy you would find in many cars because its strength and plasticity make it suitable for many projects. The AM 60 alloy comprises roughly 8% aluminium and a 0.5% manganese content material throughout the process. It makes it more powerful and impact-resistant than the AZ 91 type but still possesses good formability and weldability.

This alloy is used to produce different automotive components, like steering columns, seat frames, and suspension parts, that require strength and flexibility. The properties of energy absorption which AM60 are capable of making it one of the right kinds for applications where safety criticality and occupant protection are of much greater importance.

AM50: High-Temperature Resistance

AM50 is an alloy that offers the highest resistance to temperatures and thermal stability. This explains why it’s known for its heat resistance and can be used in applications where operating temperatures are elevated. Consisting of about 5% aluminium and 0.5% manganese, with zinc and zirconium finding a place in the mix, AM50 can work in extreme conditions and is a good heat conductor. This allows it to compete with many other aluminium alloys.

This combination is widely applied for automotive parts exposed to high temperatures, including turbocharged intake manifolds, diesel cylinder-head covers, and engine blocks. Withstanding abnormal temperatures becomes a simple task since AM50 has ideal performance criteria while facing such difficult operating conditions. Therefore, constant and efficient running of vehicle powertrain systems is guaranteed.

Automotive Components Leveraging Die Cast Magnesium

Die cast magnesium components are increasingly utilized in various automotive applications due to their lightweight properties, high strength-to-weight ratio, and excellent castability. This section examines the role of die cast magnesium in key automotive components.

Engine and Transmission Parts

Die-cast magnesium, which is extensively used in the manufacture of engine and transmission components, mainly serves to enhance their performance and, at the same time, to reduce weight. Elements like engine blocks, cylinder heads, transmission cases and oil pans may be made of magnesium alloys.

Magnesium die casting
Magnesium die casting

Using magnesium for weight reduction is one way that helps attain proper flow into the whole powertrain unit. This will, in turn, lead to the enhancement of fuel efficiency and vehicle dynamics.

Interior Components

Die-cast magnesium is employed for various interior components to enhance comfort, functionality, and aesthetics. Sample Sentence: Effectively communicating our organisation’s vision for renewable energy, the importance of our startup, and our accomplishments will be critical. Examples of such parts are the seat frames, steering column support brackets, instrument panel supports, and the door-handled, which are some of the applications that display these alloys’ unique strength and lightweight properties.

Through the use of die-cast magnesium pieces, automotive industry executives can reach the point of weight reduction without an effect on the mechanical strength or safety of the vehicle.

Structural and Body Components

Engine components and interiors are among those parts that are frequently made using die-cast magnesium to enhance durability and safety. Agents that emulate subframes, suspension components, cross members, and body panels utilize magnesium alloys’ unique lightweight and high-strength characteristics.

The application of die-cast magnesium for structural components improved automobile weight, allowed for increased rigidity, and increased the safety of crashes. As a result, a car will be better on the road (handling) and the tank (effectiveness), and it will protect the people who ride it.

Design Considerations for Die Cast Magnesium

Designing components for die casting in magnesium requires careful consideration of various factors to ensure optimal manufacturability, performance, and cost-effectiveness. This section explores key design considerations for die-cast magnesium components.

 Wall Thickness and Rib Design

Maintaining uniform wall thickness of the die-cast magnesium part is a significant requirement to prevent defects, including porosity, shrinkage, and warping, from occurring. Uniform wall thickness provides optimal material flow and solidification inherited in cast parts, reliably granting uniform mechanical properties and dimensional accuracy. Nevertheless, simply having ribs and reinforcements in the design will ensure the structural integrity and stability of the material, which comes with little weight.

However, the proper placement and shape of ribs are key since casting defects at this stage and material wastage are dangerous, which should be avoided while achieving the expected stiffness and strength.

Draft Angles and Undercuts

Developing draft angles is integral to die-cast magnesium part design; it helps with the part ejection out of the mould cavity and prevents components from binding or sticking to the mould. The right draft angles result in smooth ejected parts with little wear and tear. They also minimize the risk of damage to the mould. This helps improve the quality of the products made in the moulding process.

Additional mention should be made of the layout. The usually accepted practice is to have no sharp corners or undercuts, which can affect both the ejecting process and the quantity of defects. When chambering undercuts are mandatory, the product can be complicated by flip-action or collapsible cores to guarantee manufacturing stability and quality.

Gate and Riser Placement

Correct gating arrangement and riser placement play a significant role in die casting. It ensures a uniform material flow and low turbulence and decreases the possibility of flaws such as air entrapment and porosity. The gates are portals through which magnesium in a molten form is poured inside the mould cavity, and the risers are the provisions intended to supply additional melted metal to compensate for the shrinkage while forming solidification.

Casting designs can change the minimum number of gates and risers and depend on geometry, complexity, and casting specifications. A designer needs to have a very close look at these parameters to get accurately filled and set wisely, and quicker cycle times and high quality of material should be ensured.

Finishing and Post-Processing

After the die-casting process, finishing and post-processing steps are often necessary to achieve the desired final properties, dimensions, and surface quality of magnesium components. This section explores key finishing and post-processing techniques in the automotive industry.

Machining and Surface Treatments

The machining process is often utilized to realise small details, accurate measurements, and good quality and surface smoothing of die-cast magnesium parts. CNC milling, drilling, turning, and grinding are among the machining operations utilized to remove extra material and shape elements and have the end product with perfect surface quality.

Surface treatments like vibratory finishing shot blasting and chemical etching are also applicable, which tend to grind brushes and produce rougher surfaces to enhance surface texture and improve the appearance of the part. These treatments enable the hiding of surface flaws for the surface improvement and functionality enhancement of the magnesium components.

Heat Treatment and Aging

The heat treatment and the ageing processes are the two big steps in the production process, designed to increase the mechanical properties, dimensional stability, and corrosion resistance of die-casted magnesium components. Heat treatment conducts the heating of parts to specified temperatures and keeps them for the given times to bring the essential microstructure changes, further improving the material’s characteristics.

Joining and Assembly

Die casting, assembling die cast magnesium components, and joining them into automotive systems and structures are very important. However, various methods, including welding, adhesive joining, mechanical fastening, and riveting, are commonly used to join with other materials or magnesium parts.

Materials compatibility, joint design, and process parameters must be addressed carefully to avoid failure of the structures in the assembly process. Moreover, to improve performance and function, the petroleum valve assembly jobs can come in subsequent phases, including sealing, gasketing, and surface finishing.
