Hard Anodizing vs Regular Anodizing: Key Differences Explained

Anodizing is an exceptional coating process that allows for a smooth finish on various metal parts. However, it’s not a single process, and variations exist. The two standard anodizing processes in multiple industries are hard anodizing and regular anodizing.

The key difference between the two is that hard anodizing produces a significantly thicker and harder oxide layer, resulting in superior wear and abrasion resistance compared to the thinner, more decorative layer of regular anodizing.

However, much more goes behind the two processes, and you can only understand that once you dive into the details. So, let’s go ahead and see the battle of hard anodizing vs. regular anodizing below.

Comparing Anodizing Processes

Many different factors must be considered when comparing anodizing processes. Before we dive into the details, understand that type II anodizing is considered regular anodizing and type III anodizing is regarded as hard anodizing.

What is Anodizing?

The anodizing process is fundamentally an electrochemical conversion technique that enhances the natural oxide layer on metal surfaces, notably aluminum. This controlled oxidation is achieved by immersing the metal component, acting as the anode, within an electrolytic solution.

What is hard-anodizing?

Hard anodizing, or hard-coat anodizing, represents a specialized variation of the standard anodizing process. Its primary objective is to generate an exceptionally thick and robust aluminum oxide layer, significantly exceeding the thickness achieved through conventional anodizing.

Contrast table

With the basics aside, here’s a quick look at the key differences between the two anodizing processes.

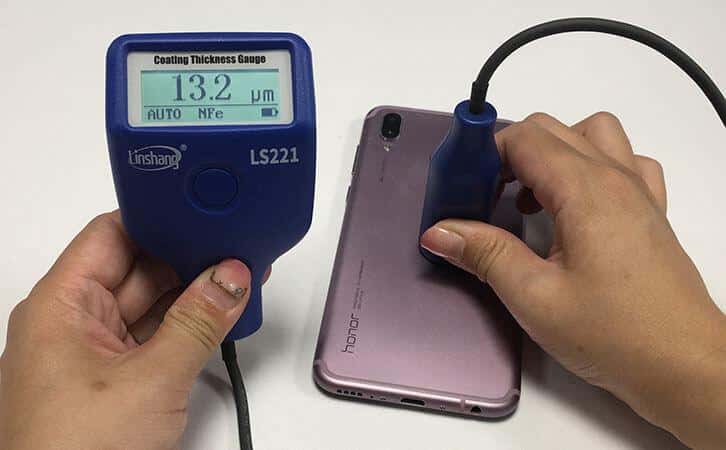

Thickness Comparison

The oxide layer thickness represents one of the most fundamental and significant differences between Type II (regular) and Type III (hard) anodizing processes. This thickness correlates with wear resistance, corrosion protection, electrical insulation properties, and component longevity.

MIL-A-8625 Type III Specifications

The military specification MIL-A-8625 establishes precise requirements for anodic coatings on aluminum:

• Type II (Regular Anodizing):
  • Class 1 (non-dyed): Minimum thickness of 0.0001″ (2.5 μm)
  • Class 2 (dyed): Minimum thickness of 0.0002″ (5.0 μm)
  • Maximum practical thickness: 0.001″ (25.4 μm)
  • Typical production thickness: 0.0002″-0.0005″ (5-12.7 μm)
• Type III (Hard Anodizing):
  • Minimum thickness of 0.002″ (50.8 μm) per MIL-A-8625F
  • Typical production range: 0.002″-0.004″ (50.8-101.6 μm)
  • Maximum practical thickness on 6061 alloy: 0.004″ (101.6 μm)
  • Maximum practical thickness on 7075 alloy: 0.003″ (76.2 μm)

The growth mechanism differs significantly between processes.

Regular anodizing produces a relatively thin, decorative layer that grows approximately 67% above the original surface dimension and 33% into the substrate.

In contrast, hard anodizing creates a much thicker coating with approximately 50% of growth extending inward and 50% outward from the original surface plane.

Typical Coating Ranges

The achievable coating thickness varies substantially based on the aluminum alloy composition:

Weight Increase Calculations

The fundamental principle behind weight gain during anodizing rests on the conversion of aluminum into aluminum oxide (Al₂O₃). This transformation involves the addition of oxygen, leading to an increase in mass. To quantify this increase, the following formula is employed:

• Δm (g) = Area (cm²) × Thickness (μm) × 0.0028 g/cm²/μm

Here:

• Δm represents the change in mass (in grams).
• Area denotes the surface area being anodized (in square centimeters).
• Thickness signifies the oxide layer’s thickness (in micrometers).
• 0.0028 g/cm²/μm is a constant representing the density of the formed aluminum oxide.

This formula highlights the direct correlation between the oxide layer’s thickness and the resulting weight gain. Type III anodizing produces significantly thicker oxide layers than Type II, and the weight increase is substantially more pronounced.

Dimensional Changes

Anodizing alters the weight and dimensions of the treated component. The oxide layer grows outward from and inward into the original surface, resulting in dimensional changes that must be accounted for.

• Type II Anodizing

Typically adds approximately 0.0001″-0.0003″ (2.5-7.6 μm) to each surface. This relatively small dimensional change is often manageable for most general applications.

• Type III Anodizing

Results in a significantly more significant dimensional increase, approximately 0.001″-0.002″ (25.4-50.8 μm) per surface. This substantial change necessitates meticulous planning, especially for components with tight tolerances.

The substantial thickness differential between Type II and Type III coatings poses significant engineering challenges, particularly for components with mating surfaces or tight tolerances.

Surface Hardness Differences

A significant advantage of hard anodizing is enhanced surface hardness. But it’s pretty tricky to understand the significant differences unless you deeply dive into it. Here’s how the differences wind up for hard anodizing and regular anodizing –

Vickers Pyramid Numbers Comparison

Vickers hardness testing involves indenting a material’s surface with a diamond pyramid indenter under a specific load. The size of the resulting indentation is measured, and the Vickers hardness number (HV) is calculated.

This number represents the material’s resistance to indentation, providing a reliable measure of its hardness.

Anodizing Type II (Regular)

• Vickers Hardness (HV): 150-250 HV

Type II anodizing, often used for decorative and corrosion-resistant finishes, produces a moderately complex oxide layer. The 150-250 HV hardness range indicates a significant improvement over the base aluminum alloy’s hardness.

• Equivalent Rockwell C: ~15-25 HRC

Converting Vickers hardness to Rockwell C (HRC) provides a familiar scale for comparison. The equivalent range of 15-25 HRC demonstrates that Type II anodizing enhances surface hardness but does not achieve the hardness of hardened steel.

Anodizing Type III (Hard)

• Vickers Hardness (HV): 300-600 HV

Hard anodizing, designed for demanding applications, yields a significantly harder oxide layer, ranging from 300 to 600 HV. This higher hardness is achieved through the process’s controlled low-temperature environment and higher current densities, resulting in a dense and robust oxide layer.

• Equivalent Rockwell C: ~30-55 HRC

The equivalent Rockwell C range of 30-55 HRC places hard-anodized aluminum in a hardness category approaching that of some hardened steels.

Scratch Resistance Testing

Scratch resistance testing evaluates a material’s ability to withstand surface damage from abrasive contact. The Pencil Hardness Test is a standard method for quantifying this property.

Pencil Hardness Test

The Pencil Hardness Test uses pencils of varying hardness grades to scratch the anodized surface. The hardness grade of the pencil that first scratches the surface is recorded. This test provides a qualitative assessment of the coating’s resistance to scratching.

Type II (Regular) Anodizing

• Typically resists pencil hardness in the range of 2H-4H.
• This indicates moderate scratch resistance, which is suitable for applications where incidental contact is expected but severe abrasion is not.
• This hardness level is appropriate for decorative applications and consumer products.

Type III (Hard) Anodizing

• Typically resists pencil hardness in the range of 7H-9H.
• This significantly higher resistance demonstrates the exceptional hardness of the hard-anodized layer.
• This hardness level is suitable for applications where scratching and wear are expected and the object must remain in good condition.

Impact on Lubrication Needs

When considering the impact of anodizing types on lubrication needs, it’s crucial to understand how the surface characteristics of standard (Type II) and hard (Type III) anodized aluminum interact with lubricants. Here’s a breakdown

Anodizing (Type II)

The porous structure of Type II anodized surfaces can hold lubricants, improving lubricity compared to untreated aluminum.

However, due to their relatively moderate hardness, these surfaces may still be susceptible to wear under heavy loads or abrasive conditions. Therefore, regular lubrication is often necessary to maintain optimal performance.

Hard Anodizing (Type III):

The tough and dense oxide layer of Type III anodizing significantly reduces friction and wear. The porous nature of the hard anodized layer, although having smaller pores than type II, still provides excellent lubricant retention.

This enhanced wear resistance often translates to reduced lubrication needs and extended service life. Hard-anodized components may sometimes operate with minimal or no external lubrication, especially in light-load applications.

Solid film lubricants like PTFE or molybdenum disulfide are often used with hard anodizing, significantly improving the surface’s lubricity.

Cost-Effectiveness Analysis

While hard anodizing typically costs more than regular anodizing, the total cost of ownership may differ. This section will provide a framework for analyzing each process’s true cost-effectiveness.

Per-Square-Foot Cost Breakdown

Understanding the direct costs helps with budgeting and planning. The cost differential between regular and hard anodizing reflects process complexity and duration:

[Note: These figures represent industry averages and may vary by region, volume, and specific requirements.]

Longevity vs Initial Investment

When assessing the economic viability of anodizing, it’s crucial to go beyond the initial processing cost and consider the total cost of ownership (TCO). This holistic approach incorporates longevity, maintenance, replacement costs, and performance in various environments.

Type II (Regular) Anodizing

• Lower Initial Cost

Type II anodizing is generally less expensive than Type III, making it an attractive option for budget-conscious applications.

• Protection Duration

Typically provides 1-3 years of protection in moderate environments. This lifespan can be sufficient for applications with minimal exposure to harsh conditions.

• Maintenance and Replacement

In demanding applications, such as those involving prolonged exposure to moisture, chemicals, or abrasive materials, Type II anodized components may require frequent maintenance or replacement. This can lead to increased long-term costs that offset the initial savings.

• Environmental Suitability

It is often suitable for indoor or controlled environments where exposure to corrosive elements is limited. This includes many decorative applications and applications where wear is minimal.

While the initial cost is lower, the potential for increased maintenance or replacement costs in challenging environments can elevate the overall TCO. Anodized steel can be an excellent choice if the part is easily replaceable and the operating environment is mild.

Type III (Hard) Anodizing

• Higher Initial Cost

Type III anodizing typically costs 1.5-2.5 times more than Type II, reflecting the increased complexity and process control required.

• Extended Protection Duration

Provides 5- 10+ years of protection, even in demanding environments. This extended lifespan translates to significant cost savings by reducing the frequency of replacements.

• Reduced Maintenance and Replacement Costs

The superior durability of complex anodized components minimizes the need for maintenance and replacement, resulting in lower long-term costs. This is especially valuable in applications where downtime for maintenance is expensive.

• Environmental Suitability

It offers superior performance in outdoor, marine, or high-wear applications where significant exposure to corrosive elements and abrasive forces occurs. This makes hard anodizing ideal for aerospace, military, and industrial equipment.

While the initial investment is higher, the extended lifespan and reduced maintenance costs of Type III anodizing often result in a lower TCO over the product’s lifetime.

Hard anodized metal provides exceptional value in applications with paramount reliability and longevity. When a part’s failure is costly, hard anodizing is almost always the correct choice.

Industry-Specific ROI Calculations

Different industries experience varying returns on investment when choosing hard anodizing over regular anodizing:

Aerospace

• Extended component life: 3-5× improvement
• Reduced maintenance intervals: 30-50% fewer service events
• Weight savings over alternative materials (steel, titanium): 40-60% while maintaining wear resistance

Automotive

• Production cost increase: 10-15%
• Warranty claim reduction: 30-40%
• Customer satisfaction improvement: 20-25%

Consumer Electronics

• Production cost increase: 15-20%
• Product returns reduction: 25-35%
• Extended product lifetime: 40-60%

Industrial Equipment

• Initial cost increase: 20-30%
• Maintenance cost reduction: 40-60%
• Downtime reduction: 30-50%

Hard Anodizing vs Regular Anodizing: Comparison Table

Conclusion

In conclusion, the choice between hard anodizing (Type III) and regular anodizing (Type II) hinges on the specific demands of the application.  Regular anodizing provides a cost-effective solution for aesthetic enhancements and moderate corrosion protection. Hard anodizing, on the other hand, delivers exceptional wear resistance and durability.

Once you decide what best suits your project, you can find the perfect partner to complete these anodizing processes for your projects in Zintilon. Their expertise in both anodizing processes is regarded throughout the manufacturing industry.
