Within the world of rapid prototyping, powder coating is a popular finishing option. It is a fantastic way to improve the physical and mechanical properties of handcrafted machine components. Powder coating has progressed from a mere finishing touch to an essential component of companies seeking longevity, efficiency, and environmental responsibility. This comprehensive guide intends to provide insights into techniques, applications, and the newest developments impacting this transforming process.

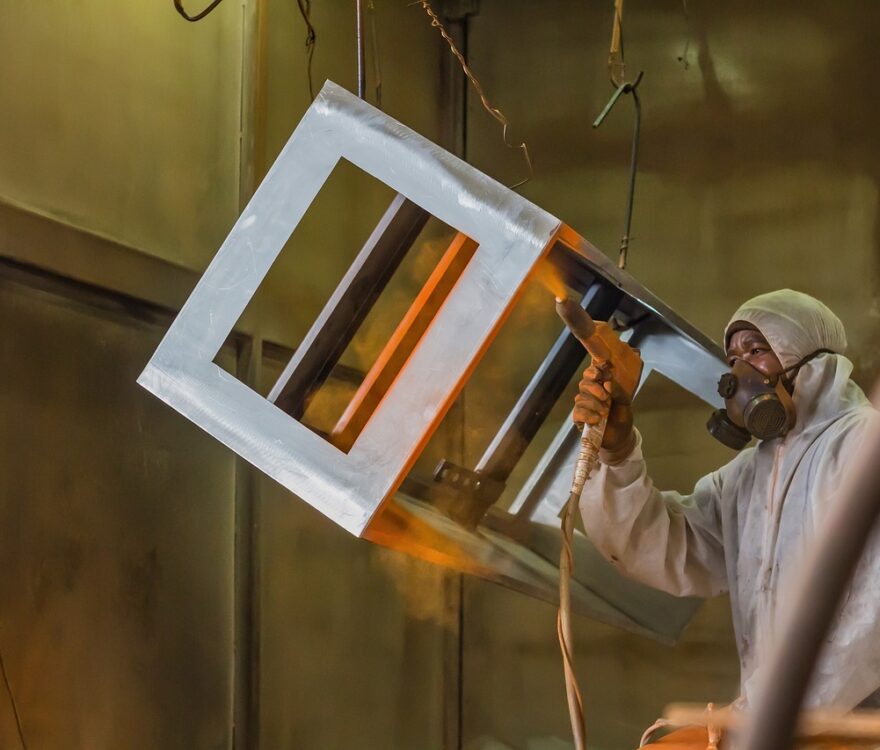

Powder Coating of a metal
Powder Coating of a metal

What is Powder Coating?

Powder coating is a popular dry metal finishing method in industrial equipment applications. Powder coating has grown in popularity since its introduction, now accounting for more than 15% of the entire industrial surface finishing market. Using an electrostatic process, this method adds dry powder to a variety of items. Its appeal stems from the combination of a high-quality, long-lasting finish, greater efficiency, and environmental compliance, making it the preferred choice for many businesses. Powder coating differentiates itself from other surface treatments by providing a diverse range of colours and textures.

Powder Coating Process

Powder coating is a multi-step surface finishing process that is suited for both metal and non-metal substrates. This complex procedure includes various steps of preparation, application, and curing, necessitating the use of necessary tools such as a spray gun, spray booth, and curing oven.

Overview of the Powder Coating Process and Equipment

Unlike the liquid coating procedure, which uses a liquid coating solution, powder coating is a dry finishing technique that uses powdered coating material. Throughout this method, the powder is applied to a prepared surface of a substrate (e.g aluminium), where it melts, then dries and hardens, eventually generating a protective or ornamental coating. The procedure is divided into three stages: surface preparation, coating application, and heat curing.

Preparation Phase

Before applying any powder coating material, the substrate’s surface must be carefully cleaned and treated to ensure the absence of dust, filth, and debris. Inadequate preparation might compromise powder adherence and affect the overall quality of the final finish. The thorough preparation process differs based on the substance to be coated. However, common steps used during this phase include washing, rinsing, etching, blasting, and drying. Wash stations, blast rooms, and dry-off ovens are among the essential pieces of equipment used.

Oil, grease, solvent, and residues can be successfully removed from a part’s surface in dip tanks or wash stations by employing mild alkali and neutral detergents. Wash stations can spray hot water, steam, detergent, and other pretreatment solutions to ensure thorough cleaning, chemical preparation, and surface rinsing before the coating process.

Masking products, such as masking dots, are put to the substrate before the application stage in cases where specified areas of the component must remain uncoated according to the design. These items, which come in a variety of conventional and custom shapes, are primarily made of paper or plastic film that has been coated with a pressure-sensitive adhesive. This adhesive feature allows them to stick to the substrate, preventing powder material from coming into contact with the targeted locations during powder coating processes.

Application Phase

Powder coating is applied in a variety of ways, depending on manufacturing objectives, financial constraints, and material choices. The two most common processes are electrostatic spray deposition and fluidized bed powder coating;

Electrostatic Deposition

The electrostatic method makes it easier to deposit charged powder particles onto a workpiece. This is accomplished by employing an electrostatic charge spray gun, a powder feeder, and a powder spray unit. The HIT generator charges the powder via the electronic spray cannon, which can be handled manually or through computer numerical control.

When the application procedure begins, the electrostatic spray pistol emits negatively charged powder particles. The positively charged, grounded workpiece is driven by these charged particles. The electrostatic attraction holds the powder to the surface of the workpiece.

Following that, the coated workpiece is heated to achieve a smooth surface finish. To make thicker coatings, repeat, cycle, or modify the spray accordingly. Electrostatic powder coating components are widely used in a variety of industries, including automotive, architecture, furniture, and appliances. When compared to standard liquid paint finishes, this approach offers significant advantages. These benefits include increased durability, resistance to chipping and scratching, and a smoother overall appearance.

Fluidized Bed Powder Coating

Unlike electrostatic discharge (ESD), fluidized bed powder coating involves applying powder coating to a workpiece using a fluidized bed. Placing the workpiece in the fluidized bed and adding the powder with a spray cannon is the procedure. Following that, the powder is cured by using heat or UV radiation. The fluidized bed is critical for guaranteeing even powder distribution across the workpiece, while the spray cannon ensures consistent application.

This process produces a tough finish that resists chipping, scratching, and fading. Furthermore, it is a low-maintenance alternative that does not require polishing or waxing.

Curing Phase

The final step in the procedure is to cure the item that has been electrostatically deposited or fluidized bed powder coated. This curing takes performed in a separate oven and can last several minutes, depending on the type of pieces, materials used, and finishing requirements. Thicker film parts frequently require longer to manufacture than thin-film counterparts.

The recommended drying time is usually between 10 and 20 minutes at 350 to 400 degrees. The powders melt under these conditions, resulting in a smooth, high-quality finish.

Types of Powder Coating

Powder coatings are classified into three types: thermosets, thermoplastics, and the novel UV-curable powder coatings, which are a relatively new scientific innovation.

When picking the best type for their application, manufacturers often consider the cost and the complexity of the desired coating. There are several sub-groups inside each of these main divisions, each created with specific finish qualities in mind. The wide variety of powders offered enables a customized approach to meeting specific requirements in coating applications.

Thermoplastic

Thermoplastics, known for their ability to soften upon heating and then solidify with cooling, offer a versatile approach. Dry powder is added to the desired portion or material during thermoplastic powder coating. When heated, the powder melts and completely covers the workpiece. When the coating cools, it obtains specialized mechanical strength, resulting in a long-lasting and functional finish.

Thermoplastic coatings are used in industrial applications due to their durability, aesthetic appeal, and safety considerations. Various thermoplastic powders are useful in the industry, and a few notable examples are included here;

Nylon

Nylon stands out as a remarkable thermoplastic powder coating material, valued for its exceptional durability and impact resistance. Its FDA clearance and food-grade status make it a popular choice for household and kitchen equipment such as dishwashers and food storage containers. Nylon’s low friction coefficient also makes it perfect for improving the surface quality of gears and mechanical tools.

Polyvinyl Chloride

During the early phases of powder coating development, polyvinyl chloride (PVC) made an early market entry. These coatings are distinguished by their pliability, smooth look, and long-lasting resilience, as well as their resistance to various solvents. PVC coatings, which are manufactured on a massive scale using polymerization in the presence of vinyl chloride, provide substantial benefits in terms of chemical and electrical insulation. They also have great spray resistance, FDA-approved food staining resistance, and outstanding dielectric and physical strength.

Polyester

Polyester is frequently used because of its robust finish, resilience to weather and temperature variations, aesthetic appeal, and abrasion resistance. Because of its durability, it is popular in outside vehicles and avionics components. Its mix of aesthetic appeal and physical robustness makes it an excellent choice for architectural purposes.

Acrylic

Acrylic has excellent surface aesthetics as well as great impact resistance. While the procedure necessitates a somewhat higher curing temperature, the result justifies the cost, establishing it as a premium powder coat option.

Acrylic powder coating is ideal for applications such as washing machines and ship structures due to its superior alkali resistance. The electrostatic spraying method ensures ideal chemical resistance, outstanding weather ability, smooth texture, and overall physical strength and durability.

Thermoset

The change occurs in the area of thermoset powder coating when thermoset resins are finely powdered and then applied to the chosen material, generating a thin film. This approach outperforms conventional oil coatings in terms of chemical and physical qualities, particularly in terms of aesthetics and corrosion protection.

Thermoset material technology has made major advances in recent years. Engineers can alter thermoset resins to improve their physical and chemical properties to meet specific goals, transforming their function in specialized surface finishing procedures. In this section, we will look at two common thermoset materials.

Epoxy

Epoxy is a thermoset powder coating type that uses epoxy resin as a binding agent. Epoxy-coated surfaces are strong and brittle, but they lose their shine over time and lack significant weather protection. As a result, they discover appropriateness for materials that are less exposed to direct UV light. Their notable characteristics, however, include high durability, chemical resistance, and adhesive properties, making them popular in industrial and commercial situations where these qualities are required.

Hybrid Epoxy-Polyester

Epoxy-polyester hybrid powder coatings provide a versatile solution by combining the strengths of epoxy and polyester. These coatings are used in a variety of sectors due to their excellent chemical resistance and endurance. They are very resistant to UV radiation and abrasion, making them a great choice for outdoor use.

UV Curable

UV-curable powder coating is similar to thermoplastic coating, however, it cures under UV light rather than at high temperatures. There are various advantages. This approach reduces the requirement for high temperatures, allowing heat-sensitive materials such as wood and organic fibers to be coated. Reduced heat demand not only broadens the spectrum of usable materials but also saves money. Because an on-site oven is no longer required, both space and energy expenses are greatly reduced. Furthermore, UV powder coating has a faster drying time than heat-sensitive thermoset and thermoplastic powders, resulting in speedier turnaround times.

Applications of Powder Coating in Different Industries

Due to the substantial industrial advantages, the applications of these powder coating products span a diverse array of industries, with their usage steadily on the rise.

Automotive: Powder coating has been the go-to choice for the automobile industry, providing a tough protective layer that withstands the harsh realities of the road. Powder-coated surfaces, from chassis components to wheels, serve a critical role in extending the life of automobile parts.

Architectural and Building: Architectural and building structures are subjected to nature’s wrath, from searing heat to pounding rain. Powder coating provides long-lasting protection against corrosion, fading, and other environmental issues in buildings. As a result, it is an excellent material for outside facades, window frames, and metal fabrication. Powder coating customization options assist architects and designers.

Furniture and Appliances: Powder coating penetrates our living environments via furniture and appliances. Aside from its aesthetic value, the coating works as a protective layer against scratches, impacts, and general wear and tear. Powder coating provides us with a world of design options for everything from kitchen appliances to outdoor furniture.

An expert using powder coating as finishes
An expert using powder coating as finishes

Industrial Equipment: Powder coating is not just about beauty in the world of heavy machinery and industrial equipment; it is also about asset preservation. The protective layer prevents corrosion, chemical exposure, and abrasion, extending the life and performance of critical machinery. Industrial processes necessitate dependability. Powder coating improves machinery performance by decreasing wear and tear, ensuring constant operation even in harsh situations.

Advantages and Disadvantages of Powder Coating

Powder coating is a superior finishing solution when compared to traditional wet paint, excelling in both protective and decorative applications. It is available in a variety of colours and has a high-quality surface finish. However, as with every system, it has benefits and drawbacks.

Pros

Excellent Surface Finishing

Because powder coating does not use brushes, it eliminates the existence of pinholes and other surface flaws. This higher level of surface finishing provides improved protection for the finished product.

Diverse Aesthetic Options

Powder coating offers a broad spectrum of colors and surface finishes, making it well-suited for extensive architectural and aesthetic purposes.

Cost Effectiveness

Powder coating is a more cost-effective option than liquid paint. Despite a slightly larger initial expenditure, it uses less energy during the curing process.

Durability

Powder-coated materials resist fading, chipping, scratching, and wear, making them an excellent choice for applications requiring physical toughness, sustainable finishes, and resilience to environmental factors.

Environmentally Friendly

Powder coating stands out as an eco-friendly method, free from harmful chemicals and solvents, thanks to its absence of volatile organic compounds.

Cons

Higher initial investment

Starting a powder coating business requires a considerably greater initial expenditure, owing to rising raw material costs. Nonetheless, when seen over time, the overall costs appear to be less expensive than those connected with traditional paint.

Heat Curing is a constraint

Powder coating applications that require heat curing are limited to specific materials, primarily metals. Because of the high temperatures required for this curing technique, it cannot be used on polymers, composites, or MDF (medium-density fiberboard).

Difficult to do touch-ups.

Touch-ups in powder coating are more complicated because the entire technique must be completed rather than a localized patch.

Comparison between Powder Coating vs. Paints

While the objectives of powder coating and wet paints align closely, the former boasts several advantages over traditional paints. The table below outlines the primary distinctions between powder coating and paints.

Powder Coating Paints
In its dry form, powder coating is solvent-free, distinguishing it from liquid paint, which contains solvents.Paint is characterized by its liquid form and contains solvents, setting it apart from solvent-free powder coating.
While the upfront expense may be higher, opting for powder coating proves to be an optimal solution when considering its extended lifespan and reduced maintenance costs.Despite the lower initial cost, traditional paint falls short in terms of longevity compared to powder coating.
Powder coating excels in delivering heightened resistance to corrosion, abrasion, and wear.Painting exhibits lower resistance to wear, abrasion, and corrosion.
The application of powder coating ensures a flawless finish with no drips or sags.Achieving a drip- and sag-free finish in paint application demands the expertise of highly skilled operators.
Powder coating surpasses traditional painting methods in terms of both performance and efficiency.Painting generally results in diminished performance and efficiency.

Conclusion

Powder coating, a dry finishing process, uses finely ground pigment and resin particles to obtain consistent surface gloss levels. This approach not only provides a wider range of colors and finishes but also produces a more durable result than standard paint.

If you are considering powder coating for your projects, it is critical to devote time to gaining the necessary knowledge. At Zintilon, we specializes in expert finishing services, bringing years of knowledge to the table. Our team is dedicated to offering cost-effective surface finish solutions across a variety of sectors, ensuring that your products not only meet but exceed your aesthetically and functional standards.

FAQs

Why is powder coat better than conventional ordinary paint?

Unlike the conventional paint, powder coat is more durable with higher level of surface finishing. The waste products generated from powder coat process is lesser than that of ordinary paint.

What is the durability of powder coating?

Many factors determine the durability of powder coating. At optimal condition, it can last for many years and outlast ordinary paints.

What differentiates powder coating from wet paint?

Powder coating is the application of a dry powder to a substrate followed by heat curing to provide a long-lasting finish. In contrast, wet paint is applied as a liquid and dries as the solvent evaporates.
