    Die casting is a popular manufacturing process used in the creation of several metal parts like gears, door knobs, engine blocks, steering wheels, and electrical parts at large volumes. One of the essential aspects of this process is the die casting mold. It is a significant determinant of how your final product would look because of its ability to manufacture complex components repeatedly with high precision.

    Although the die casting mold process is the best option for producing complex parts, it is quite challenging to operate and function with, from the die casting mold design to understanding its components and steps. This knowledge is needed to choose the best mold per your manufacturing needs.

    In this article, you will learn how these molds are designed and why this is so important for making things efficiently. You will also learn the types and components of die casting molds. Finally, you will know the factors to consider for creating the perfect die tooling.

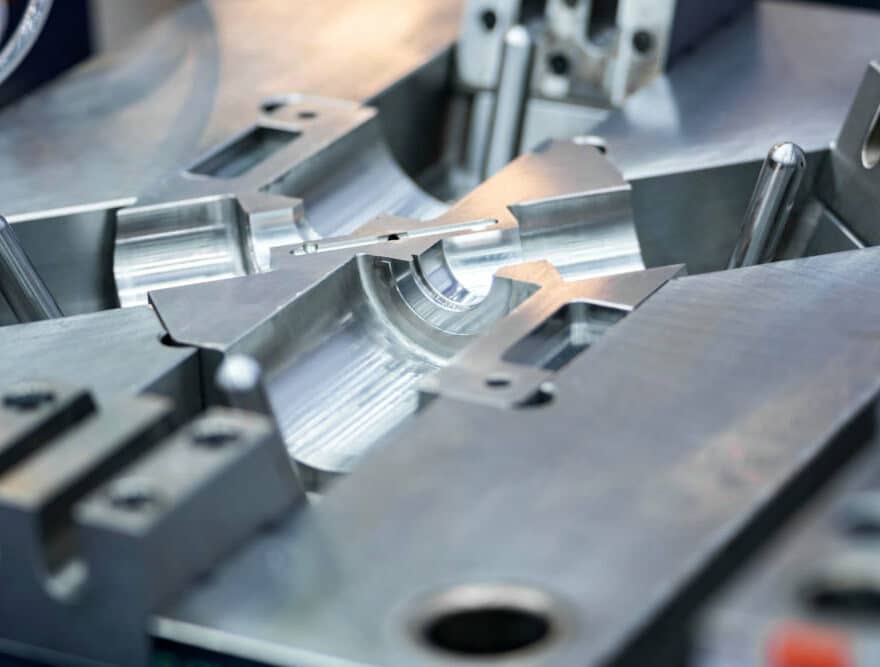

    What is Die Casting Mold?

    A die casting mold is a crucial tool in producing metal parts, facilitating the die casting process on a die casting die-forging machine. die casting molds are vital in this modern manufacturing process, particularly in die cast molding, where molten metal is shaped into intricate components under high pressure.

    The Significance of Die Cast Molds in Manufacturing

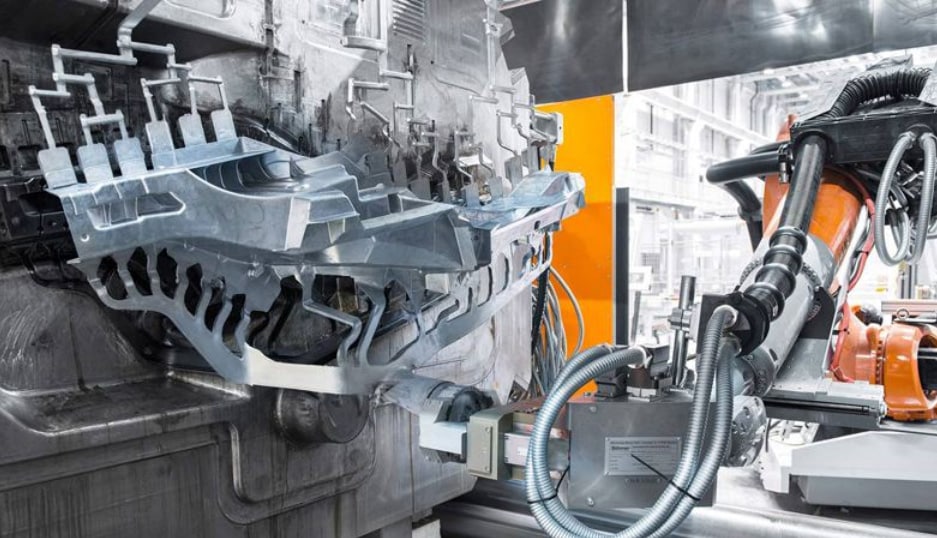

    High pressure die casting mold in action, producing metal parts with efficiency
    High pressure die casting mold in action, producing metal parts with efficiency

    Die casting molds play a crucial role in manufacturing, significantly influencing the efficiency and quality of production processes. They are essential for crafting detailed and precisely shaped metal components through die casting. Some significance of the molds include:

    Shape and Form

    The die casting mold determines the shape and form of the final product. It acts as a template, shaping molten metal into the desired configuration. The Complexity of mold design directly impacts the appearance and dimensions of the manufactured part.

    Quality Assurance

    The quality of the die casting mold is directly proportional to the quality of the end product. A well-designed mold ensures consistency and precision in the castings, minimizing variations and defects. This contributes to the overall quality assurance of the manufacturing process.

    Uniformity and Consistency

    die casting molds produce parts with a high level of uniformity and consistency. This is crucial in industries where standardized components are essential for seamless assembly and optimal functionality. Any flaws or deviations in the mold design can result in inconsistencies across the manufactured products.

    Efficiency and Production Speed

    The die casting mold significantly influences the efficiency of the manufacturing process. A meticulously crafted mold design can enhance production efficiency by allowing for faster cooling times, reducing cycle times, and enabling mass production of parts within a shorter timeframe.

    Material Optimization

    The die casting mold plays a role in optimizing material usage. The design should minimize waste during casting, contributing to cost savings and adherence to sustainable manufacturing practices.

    Types of die casting Mold

    In die casting, different types of molds serve distinct functions based on specific requirements. They include:

    Prototyping Dies

    Prototyping dies is invaluable and cost-effective in die casting, serving as a means to test different parts before committing to full-scale production. By utilizing methods such as gravity casting, machined hog outs, and 3D printed parts, prototyping dies allows for the assessment of properties, tolerances, and designs, aiding in the refinement of the final product. Prototyping dies cater to various casting methods, facilitating the testing of different materials and designs. The use of prototyping strategies involves trade-offs in properties, tolerance, and design, ensuring a comprehensive evaluation of the potential final product.

    Rapid Tooling Dies

    Rapid tooling dies encompass inserts and dies manufactured using strategies with lesser lead times than regular approaches, such as selective laser sintering and laser-engineered net shaping. These dies are versatile, serving either as prototyping tools or production dies, depending on the production volume requirements. Manufacturers can choose the most suitable application for prototyping or full-scale production based on specific project needs.

    Production Dies

    Production dies are the standard molds used when the design is finalized and the manufacturing process is ready for large-scale production. In single-cavity or multiple-cavity configurations, production dies are made of high-quality steel, ensuring critical dimensions and meeting required machining specifications. Production dies accommodate various design complexities, including slides and multiple cavities. Designed for prolonged use, these dies withstand high-volume production cycles.

    Unit Dies

    Unit dies are specialized molds designed for flexibility, holding unit dies, or customer-owned cavities within the die caster unit holder. Unit dies offer efficiency and control, ideal for less complex components with low volume production. Custom dies are preferred for higher-volume parts with complex geometry. Unit dies support a range of cavity block sizes, providing adaptability for different component sizes.

    Trim Dies

    CMW utilizes trim dies for high-volume production along with production dies. Trim dies remove excess material immediately after casting is complete. They are essential for eliminating flash, runner, and overflow, contributing to the final product’s aesthetic and functional quality. Also, hand de-flashing and custom trimming services are employed when trim dies alone cannot eliminate flash due to complex part geometries.

    Key Components of a die casting Mold

    Die casting mold with innovative design elements for improved thermal stress management
    Die casting mold with innovative design elements for improved thermal stress management

    Constructing a proficient die casting mold entails considering several fundamental components meticulously. Each is important in achieving precision and consistency throughout manufacturing.

    Mold Base

    The mold base is the foundation for the entire mold assembly. It is typically made of steel and is vital in maintaining dimensional accuracy.

    Core-pulling Mechanism

    The core-pulling mechanism moves the cores within the mold, enabling the production of complex shapes with internal features and adding versatility to the die casting process.

    Ejection

    Ejection mechanisms, such as ejector pins or plates, are essential for removing the cast part from the mold and ensuring the finished product’s smooth and efficient release.

    Runner

    The runner is a passageway that channels molten metal from the injection system to the mold cavity. Proper runner system design and optimization help minimize defects and ensure consistent casting quality.

    Molding System

    The molding system is a crucial component that encompasses the entire process involving the mold cavity and core. It determines the final shape and characteristics of the cast product.

    Overflow

    Overflow, or overflow well, is designed to capture excess molten metal during injection. It prevents air entrapment and ensures a clean and uniform mold cavity fill.

    Bypass System

    The bypass system allows for the controlled diversion of molten metal, providing flexibility in the casting process and helping manage flow characteristics for optimal results.

    Guide Parts

    Guide parts facilitate proper alignment and movement of mold components, ensuring precision in casting and preventing misalignment issues.

    Factors to Consider for Making Perfect Die Casting Tooling

    Custom aluminum die casting mold showcasing precision components for specialized production
    Custom aluminum die casting mold showcasing precision components for specialized production

    Before embarking on the creation of die-cast tooling, several factors must be considered to guide the design process. These encompass:

    Symbols

    In die casting mold design, the use of clear and standardized symbols is vital. These symbols communicate critical information about features, tolerances, and surface finishes, ensuring a common understanding among design, manufacturing, and inspection teams.

    Wall Thickness

    Maintaining uniform wall thickness is crucial for achieving consistent casting quality. Proper wall thickness minimizes variations in cooling rates, reducing the risk of defects such as porosity and ensuring structural integrity in the final product.

    Ribs

    Integrating ribs into the mold design adds strength and stiffness to the cast part. Thoughtful consideration of rib placement, height, and thickness contributes to optimal structural performance without compromising the overall casting quality.

    Bosses

    Bosses, or raised features, are elements in die casting molds that require special attention. Design considerations for bosses include appropriate thickness, draft angles, and proper placement to ensure effective molten metal flow and avoid casting defects.

    Draft

    Incorporating draft angles into the mold design facilitates easy ejection of the cast part. Proper draft angles reduce friction between the mold and the casting, minimizing the risk of damage during ejection and ensuring smooth production.

    Holes and Windows

    Accurate design of holes and windows is essential for precision in die casting. Considerations include proper dimensions, placement, and draft angles to facilitate the casting process and ensure the production of components with accurate features.

    Filets

    Well-designed filets contribute to the overall strength and durability of the casting. Properly executed filets at intersections and transitions reduce stress concentrations, enhance material flow during casting, and improve the longevity of the finished product.

    Parting Lines

    Careful consideration of parting lines, where the mold separates into halves, is crucial for achieving high-quality die castings. Strategic placement of parting lines minimizes cosmetic issues, facilitates smooth ejection, and ensures consistent parting across production runs.

    Mold Design Process for die casting

    Die casting mold with advanced coatings contributes to enhanced durability and part quality
    Die casting mold with advanced coatings contributes to enhanced durability and part quality

    Designing a mold for high-pressure die casting involves a comprehensive process divided into five main phases:

    Initiation Phase

    The mold design process for die casting begins with a comprehensive preliminary phase. This stage thoroughly analyzes the project requirements, considering product type, production volume, and material specifications. Understanding these parameters is crucial in laying the groundwork for a successful mold design.

    This stage includes identifying specific features, dimensions, or complexities impacting the mold design. The preliminary phase sets the foundation for subsequent decisions in the die casting mold creation process.

    Strategic Cavity Determination

    The number of cavities in the die casting mold directly influences the production efficiency and output. Determining the optimal number of cavities involves balancing factors such as cycle time, part complexity, and the desired production volume.

    A higher number of cavities can increase production speed but may also introduce challenges related to cooling and material flow. Conversely, a lower number of cavities may offer better control over these factors but may result in a slower production rate. Striking the right balance is crucial to achieving an efficient and cost-effective die casting process.

    Critical Projection Area Analysis

    The projection area of the die refers to the surface area where the molten metal enters the mold cavity. It is a critical parameter in ensuring uniform filling and solidification of the casting. The projection area is influenced by factors such as part geometry, material viscosity, and mold design. An accurate projection area calculation is essential to prevent defects like incomplete filling or air entrapment. It is a key consideration in achieving a high-quality die casting with consistent dimensions and properties.

    Volume and Shape Examination of the Die

    The volume and shape of the die are integral to the overall mold design. This involves determining the internal geometry of the mold cavity to match the desired part specifications. Factors such as part complexity, draft angles, and undercuts are carefully considered during this phase.

    Achieving the correct volume and shape ensures the accurate replication of the desired product. Mold geometry impacts material flow, cooling rates, and part ejection, making it a critical aspect of the die casting mold design process.

    In-Depth Simulation Utilization Using Semi-Empirical Models

    Simulation through semi-empirical models involves utilizing advanced computer-aided design (CAD) and simulation tools to assess and refine the die casting mold design. This step allows for the virtual testing of various design parameters, including material flow, cooling rates, and potential defects. This simulation helps identify potential casting issues and also aids in calculating mold filling modality, depending on the casted piece’s function and the filling process. This proactive approach enhances the overall success and reliability of the die casting mold.

    Here’s a table summarizing the Mold Design Process for die casting:

    StageConsideration
    Initiation StageUnderstand the requirements and specifications for the die-cast part. Identify critical features and any special considerations.
    Number of CavitiesDetermine the desired quantity of cavities in the mold based on production requirements. Consider factors such as cycle time, production volume, and part complexity.
    Projection AreaEvaluate the projected area of the die-cast part to estimate the clamping force required. This influences the size and specifications of the die casting machine.
    Volume and Shape of DieAnalyze the overall volume and shape of the die, considering factors like cooling requirements, material flow, and the structural integrity of the die for prolonged use.
    Simulation through Semi-Empirical ModelsUtilize semi-empirical models and simulations to predict the behavior of molten metal during the casting process. This includes assessing factors such as filling patterns, cooling rates, and potential defects.

    Maintenance Strategies for die casting Molds

    Effective maintenance of die casting mold necessitates careful adherence to several precautions:

    Bolt Inspection

    Before mold installation, meticulously examine the fastening bolts to ensure they are securely tightened, minimizing the risk of loosening during operation.

    Lubrication and Operational Check

    Thoroughly lubricate all sliding and guide components before mold trials. Execute several slow-speed mold open-close cycles to verify all moving parts’ stability, reliability, and flexibility.

    Preheating and Trial Process

    During the trial phase, fully preheat the mold and adhere to the recommended preheating and working temperatures for custom aluminum die casting mold. Initiate the die casting process at a slightly lower melt temperature, injection pressure, and medium speed. Then, pressure tests will be conducted, and parameters will be adjusted gradually for optimal performance. Strictly avoid testing the mold under high pressure or speed without adequate preheating.

    Defect Analysis and Resolution

    If die casting defects emerge during the trial (e.g., insufficient filling, porosity, shrinkage holes, demolding issues, flash), meticulously analyze die casting machine parameters, the parallelism of static and dynamic plates, and the application of release agents. Address identified causes to eliminate defects.

    Regular Cleaning and Lubrication

    Throughout the production process, systematically clean and lubricate guide and sliding mold parts to ensure unhindered movement, precise alignment, and jam prevention.

    Innovations and Future Trends in die casting Mold Technology

    Complex geometry in die casting mold, highlighting the versatility in creating intricate metal parts
    Complex geometry in die casting mold, highlighting the versatility in creating intricate metal parts

    Witnessing a revolution in die casting mold technology, key elements such as precision die casting, high-pressure die casting molds and cutting-edge advancements like 3D printing and advanced coatings are shaping the industry’s trajectory. Emphasizing die casting mold design, components, and fabrication, this evolution also spotlights materials, including aluminum die casting mold design and custom aluminum die casting mold innovations.

    As the die casting landscape embraces innovation, the future unfolds with a continual focus on sustainable practices, automation, and emerging technologies. Stay informed about these dynamic shifts as die casting mold technology propels toward a future marked by efficiency, quality, and environmental consciousness.

    Conclusion

    die casting mold is essential to the die casting process’s efficiency, precision, and overall success. A well-designed mold is necessary for achieving high-quality, defect-free metal parts.

    Understanding how die casting mold is designed can simplify your die casting project, saving you time and money. It’s essential to rely on experts for the right tools and best results. At Zintilon, we specialize in precision die casting services for custom metal parts. We offer various materials, manufacturing processes, and surface finishing options. Our experts guide you to ensure you choose the most effective solutions for your project.

    FAQs

    How are die-cast molds made?

    Die-cast mold undergoes a meticulous crafting process involving precision machining and tooling. This method employs high-quality materials and advanced manufacturing techniques to ensure the creation of molds that meet precise specifications.

    How do materials impact mold performance?

    The choice of materials significantly influences mold performance in die casting. Selecting optimal materials is crucial for ensuring durability, efficient thermal conductivity, and overall longevity, directly impacting the quality and consistency of the final cast products.

    What are the latest trends in mold design?

    Current trends in mold design encompass innovations like 3D printing for intricate mold geometries, creative cooling strategies for enhanced efficiency, and integration of smart technologies to monitor and optimize the die casting process in real-time. Staying informed about these cutting-edge developments is essential for leveraging advancements in your projects.
