3 Axis vs 4 Axis vs 5 Axis CNC Milling: What Are the Differences?

In the world of precision machining, CNC milling machines play a crucial role. These versatile machines can produce complex parts with high accuracy and repeatability.

However, not all CNC milling machines are created equal. The number of axes a machine has can significantly impact its capabilities, efficiency, and the types of parts it can produce. This makes choosing the perfect CNC milling difficult for us at times.

That’s why, here we are diving deep into the debate of 3-axis vs 4-axis vs 5-axis CNC milling. We will go through each milling machine type, and compare the differences in each of them. So, if you are struggling to choose a machine, this guide will help you with it. Let’s get going.

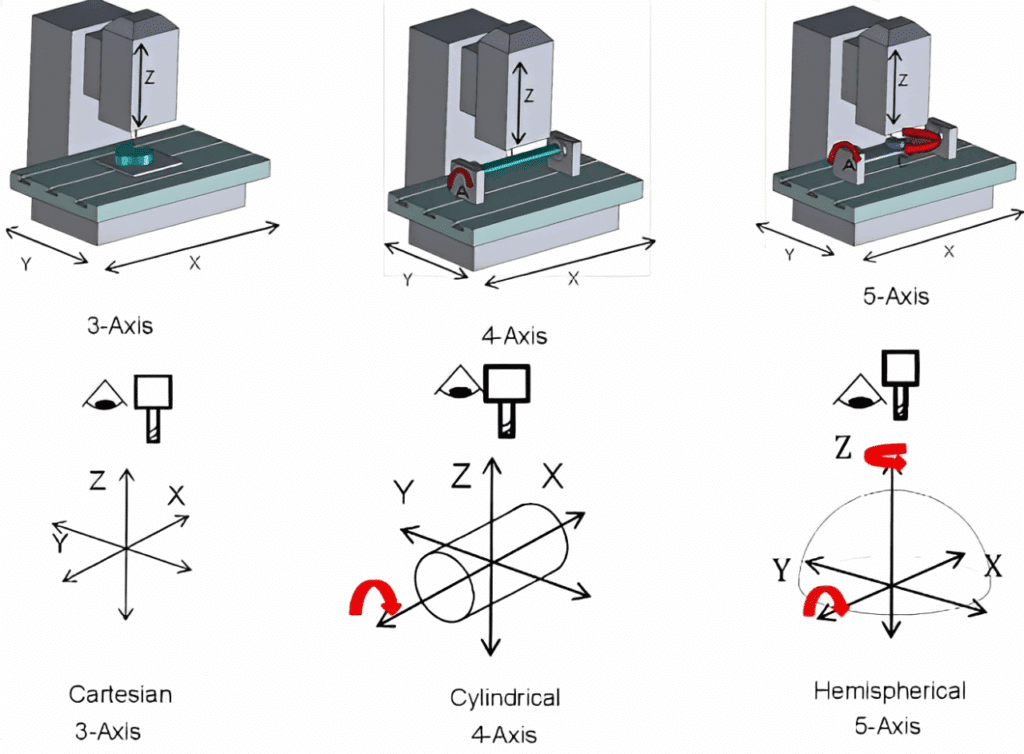

3 Axis vs 4 Axis vs 5 Axis Differences Comparison

Before we examine each type of CNC milling machine in detail, let’s briefly outline the key differences:

• 3-axis machines move along the X, Y, and Z axes, providing basic linear motion.
• 4-axis machines add rotation around one axis, typically the X-axis, allowing for more complex part geometries.
• 5-axis machines offer the most flexibility, with movement along three linear axes and rotation around two additional axes.

Now, let’s explore each type of machine in more depth.

3 Axis CNC Milling

3-axis CNC milling is the most basic and widely used form of CNC machining. These machines operate by moving the cutting tool along three perpendicular axes: X, Y, and Z. This configuration allows for a wide range of machining operations, making 3-axis mills versatile and suitable for many applications.

How it works

In a 3-axis CNC mill, the machine’s movements are defined by a Cartesian coordinate system:

1. X-axis: Represents horizontal movement parallel to the machine table, typically from left to right.
2. Y-axis: Represents horizontal movement perpendicular to the X-axis, usually from front to back.
3. Z-axis: Represents vertical movement, controlling the depth of the cut.

The CNC controller interprets programmed instructions to coordinate the movement of these axes, guiding the cutting tool along a specified path to remove material from the workpiece. This process can involve various cutting operations, such as:

• Facing: Removing material from the top surface of the workpiece to create a flat surface.
• Drilling: Creating holes of various sizes and depths.
• Boring: Enlarging or finishing existing holes with high precision.
• Pocket milling: Cutting out recessed areas within the workpiece.
• Contouring: Cutting along the outside edge of a part to create specific shapes or profiles.

Capabilities and limitations

3-axis CNC mills are capable of producing a wide range of parts and components. Their capabilities include:

• 2D and 2.5D machining: Ideal for parts that primarily require work on one or two sides.
• Precision cutting: Able to achieve tight tolerances and smooth surface finishes.
• Versatility: Can handle various materials, from soft plastics to hard metals.
• Cost-effectiveness: Generally more affordable than 4-axis or 5-axis machines.

However, 3-axis machines do have limitations:

• Limited access: Cannot easily machine complex geometries or parts requiring work on multiple sides without manual repositioning.
• Undercuts: Difficulty in creating undercuts or features that are not visible from directly above the workpiece.
• Setup time: This may require multiple setups for complex parts, increasing production time.
• Tool interference: Longer cutting tools may be necessary to reach certain features, potentially reducing rigidity and accuracy.

Ideal applications

3-axis CNC mills are well-suited for a variety of applications, including:

• Prototyping: Quick and cost-effective for producing prototype parts.
• Flat parts: Ideal for components that are primarily flat or require machining on one or two sides.
• Simple to moderately complex geometries: Can handle many common part designs efficiently.
• Small to medium production runs: Offer a good balance of versatility and cost-effectiveness.
• Education and training: Excellent for learning CNC programming and operation basics.

Industries that frequently use 3-axis CNC milling include:

• Automotive: For producing engine components, brake parts, and chassis elements.
• Aerospace: Manufacturing structural components and interior fittings.
• Electronics: Creating housings, heat sinks, and other hardware components.
• General manufacturing: Producing a wide range of industrial and consumer goods.

4 Axis CNC Milling

4-axis CNC milling builds upon the capabilities of 3-axis machines by adding a fourth axis of rotation, typically around the X-axis. This additional axis is often referred to as the A-axis. The introduction of this rotational axis significantly expands the machine’s capabilities, allowing for more complex part geometries and improved efficiency in certain applications.

How it works

In a 4-axis CNC mill, the workpiece can be rotated around one axis while the cutting tool moves along the X, Y, and Z axes. This configuration allows for:

1. Linear movement along X, Y, and Z axes
2. Rotational movement around one axis

The rotational axis can be implemented in two main ways:

1. Rotary table: The workpiece is mounted on a table that can rotate, allowing machining operations on multiple sides of the part.
2. Indexing head: The workpiece is held in a spindle that can rotate to precise angular positions.

The CNC controller coordinates the movement of all four axes, allowing for more complex cutting paths and the ability to machine parts from multiple angles without manual repositioning.

Capabilities and advantages

4-axis CNC milling offers several advantages over 3-axis machining:

• Multi-sided machining: Ability to machine parts on multiple sides in a single setup, reducing handling and improving accuracy.
• Reduced setup time: For parts requiring work on multiple sides, 4-axis machines can significantly reduce the need for manual repositioning.
• Improved surface finish: The rotational axis allows for better tool positioning, resulting in improved surface quality on curved or contoured surfaces.
• Creation of helical features: Ideal for producing spiral grooves, threads, and other helical geometries.
• Enhanced efficiency: Can complete certain complex parts faster than 3-axis machines due to reduced setup time and improved tool paths.
• Increased accuracy: Minimizes errors that can occur when manually repositioning parts for multiple setups.

Limitations

While 4-axis CNC mills offer significant advantages over 3-axis machines, they still have some limitations:

• Limited undercut capabilities: While better than 3-axis machines, they may still struggle with certain undercuts and complex geometries.
• Simultaneous axis limitations: Most 4-axis machines are limited to 3+1 axis operation, meaning they can’t simultaneously control all four axes during cutting.
• Programming complexity: Requires more advanced programming skills compared to 3-axis machining.
• Cost: Generally more expensive than 3-axis machines in terms of initial investment and maintenance.

Ideal applications

4-axis CNC mills are particularly well-suited for:

• Cylindrical parts: Ideal for machining features around the circumference of cylindrical workpieces.
• Multi-sided components: Parts requiring machining on multiple faces or sides.
• Helical features: Creation of spiral grooves, threads, and other helical geometries.
• Complex profiles: Parts with intricate profiles that would be difficult or impossible to machine with a 3-axis system.

Industries that benefit significantly from 4-axis CNC milling include:

• Medical device manufacturing: For producing implants, surgical instruments, and other complex medical components.
• Aerospace: Manufacturing turbine blades, structural components, and other parts with complex geometries.
• Automotive: Creating engine components, transmission parts, and custom aftermarket products.
• Mould making: Producing moulds with complex parting lines or undercuts.
• Custom machining: Offering increased flexibility for a wide range of specialized parts.

5 Axis CNC Milling

5-axis CNC milling represents the pinnacle of CNC machining technology. These advanced machines offer movement along three linear axes and rotation around two additional axes.

Typically either the A-axis rotation around the X-axis or the B-axis rotation around the Y-axis, and C-axis rotation around the Z-axis. This configuration allows for the most complex and precise machining operations possible with current technology.

How it works

In a 5-axis CNC mill, the cutting tool or the workpiece can be positioned at virtually any angle relative to each other. This is achieved through a combination of linear and rotational movements:

1. X, Y, and Z axes: Provide linear movement in three dimensions.
2. A-axis or B-axis: Either rotation around the X-axis or Y-axis, respectively.
3. C-axis: Rotation around the Z-axis.

The exact configuration can vary, with CNC machines rotating the cutting tool while the workpiece rotates or remains stationary. Regardless of the specific setup, the result is the ability to approach the workpiece from almost any angle, allowing for complex machining operations to be performed in a single setup.

Types of 5-axis machines

There are two main types of 5-axis CNC machines:

1. 3+2 axis machines also known as 5-axis positional
   • Can position the cutting tool or workpiece at various angles but can only cut using 3-axis movements at any given time.
   • The two rotational axes are used to position the part, then locked in place during cutting.
   • Ideal for parts that require machining from multiple angles but don’t need simultaneous 5-axis movement.
2. Simultaneous 5-axis machines
   • Can move all five axes simultaneously during cutting operations.
   • Allows for the most complex geometries to be machined, including flowing contoured surfaces.
   • Offers the highest level of flexibility and precision in CNC machining.

Capabilities and advantages

5-axis CNC milling offers numerous advantages over 3-axis and 4-axis machining:

• Complex geometries: Ability to machine highly intricate shapes and contours that would be impossible or impractical with fewer axes.
• Single-setup machining: Can often complete complex parts in a single setup, reducing handling and improving accuracy.
• Improved surface finish: The ability to maintain optimal tool orientation to the workpiece surface results in superior surface quality.
• Enhanced tool life: Optimal tool orientation also reduces tool wear and allows for the use of shorter, more rigid cutting tools.
• Reduced cycle times: For complex parts, 5-axis machining can significantly reduce overall production time.
• Undercut capabilities: Can easily machine undercuts and deep pockets that would be challenging or impossible with fewer axes.
• Improved accuracy: Elimination of multiple setups reduces cumulative errors and improves overall part accuracy.

Limitations

While 5-axis machines offer unparalleled capabilities, they do have some limitations:

• Cost: Significantly higher initial investment compared to 3-axis and 4-axis machines.
• Complexity: Requires advanced programming skills and can have a steep learning curve for operators.
• Maintenance: More complex machines generally require more frequent and costly maintenance.
• Overkill for simple parts: The additional capabilities may not be necessary or cost-effective for simpler geometries.

Ideal applications

5-axis CNC mills excel in various applications, including:

• Aerospace components: Turbine blades, impellers, and structural components with complex contours.
• Medical implants and devices: Orthopedic implants, dental prosthetics, and surgical instruments.
• Mould and die-making: Complex moulds with intricate details and challenging parting lines.
• Automotive parts: Cylinder heads, engine blocks, and high-performance components.
• Energy sector: Turbine components, pump impellers, and other complex fluid-handling parts.
• Artistic and architectural elements: Sculptural forms and intricate decorative pieces.

Industries that benefit most from 5-axis CNC milling include:

• Aerospace and defense
• Medical and dental
• Automotive
• Energy and power generation
• Mold and die manufacturing
• Luxury goods and high-end consumer products

Comparison Table

Now, it’s time to check out the key differences between the CNC milling methods and how they differ in terms of the technicalities.

Work With Zintilon to Start Your CNC Milling Projects

Unlock the full potential of your CNC milling projects with Zintilon. We have been introducing various kinds of CNC milling machines like Fanuc 3-axis CNC, Makino 4-axis CNC, and Hermle 5-axis CNC milling machines. Our cutting-edge technology and dedicated team are ready to deliver precision, efficiency, and quality, no matter the 3-axis, 4-axis, or 5-axis CNC milling. From intricate designs to large-scale production, we tailor our solutions to fit your exact needs. Let Zintilon be your trusted partner in bringing your ideas to life. Contact us now to get started and see the difference for yourself!

Conclusion

In conclusion, the choice between 3-axis, 4-axis, and 5-axis machining ultimately depends on the specific requirements of your project. By understanding the capabilities and limitations of each technology, you can make informed decisions to optimize production efficiency, part quality, and overall manufacturing costs.

For instance, if you work with 2D and 2.5D parts and want a cost-effective solution, then go with 3-axis CNC milling. If you want a balance of cost and functionality, then pick 4-axis CNC milling. And if you want to make complex parts then go with 5-axis CNC milling.
